Yamaha Outboard Parts - METER 2 - ME422STIP2 (2013) | Flood Marine

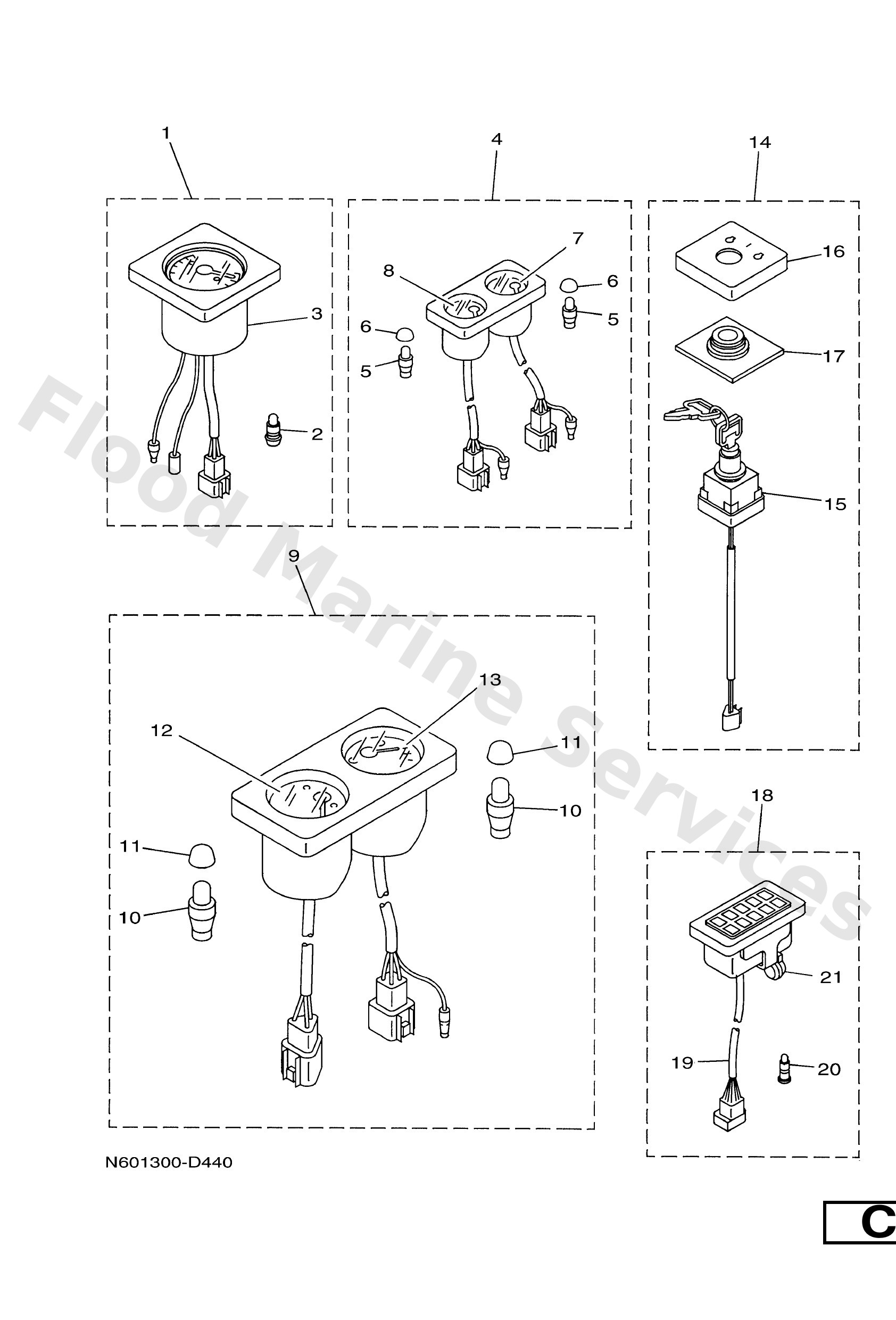

Diagram: METER 2

Diagram

Parts List

Reference
Description
Price


1
6YF8360000 WITH HOUR METER
Tacho & hour metr assembly
Loading…

↗
2
6Y58351700
Bulb (12v-1.7w)
Loading…

↗
3
6YF8354000
Tachometer assembly
Loading…

↗
4
6YF83600B1
Water temp/oil pressure meter
Loading…

↗
5
6YF8351800
Bulb, meter (t6.5, 14v-1.4w)
Loading…

↗
6
6YF8360600
Cap, bulb
Loading…

↗
7
6YF8359011
Water temperature assembly
Loading…

↗
8
6YF8365011
Oil pressure meter assembly
Loading…

↗
9
6YF83600C1
Trim & volt meter assembly
Loading…

↗
12
6YF8350311
Voltmeter assembly
Loading…

↗
13
6YF8367011
Trim gauge
Loading…

↗
14
6YF8257011
44-
Loading…

↗
15
6YF8251001
Main switch assembly
Loading…

↗
16
6YF8257110
Panel, switch
Loading…

↗
17
6YF8258800
Plate
Loading…

↗
18
6YF8353010
Indicator lights panel assembly
Loading…

↗
19
6YF8350910
Socket cord assembly
Loading…

↗
21
70383383A0
Buzzer
Loading…

↗
