RIGGING - METER (2017)
METER 2

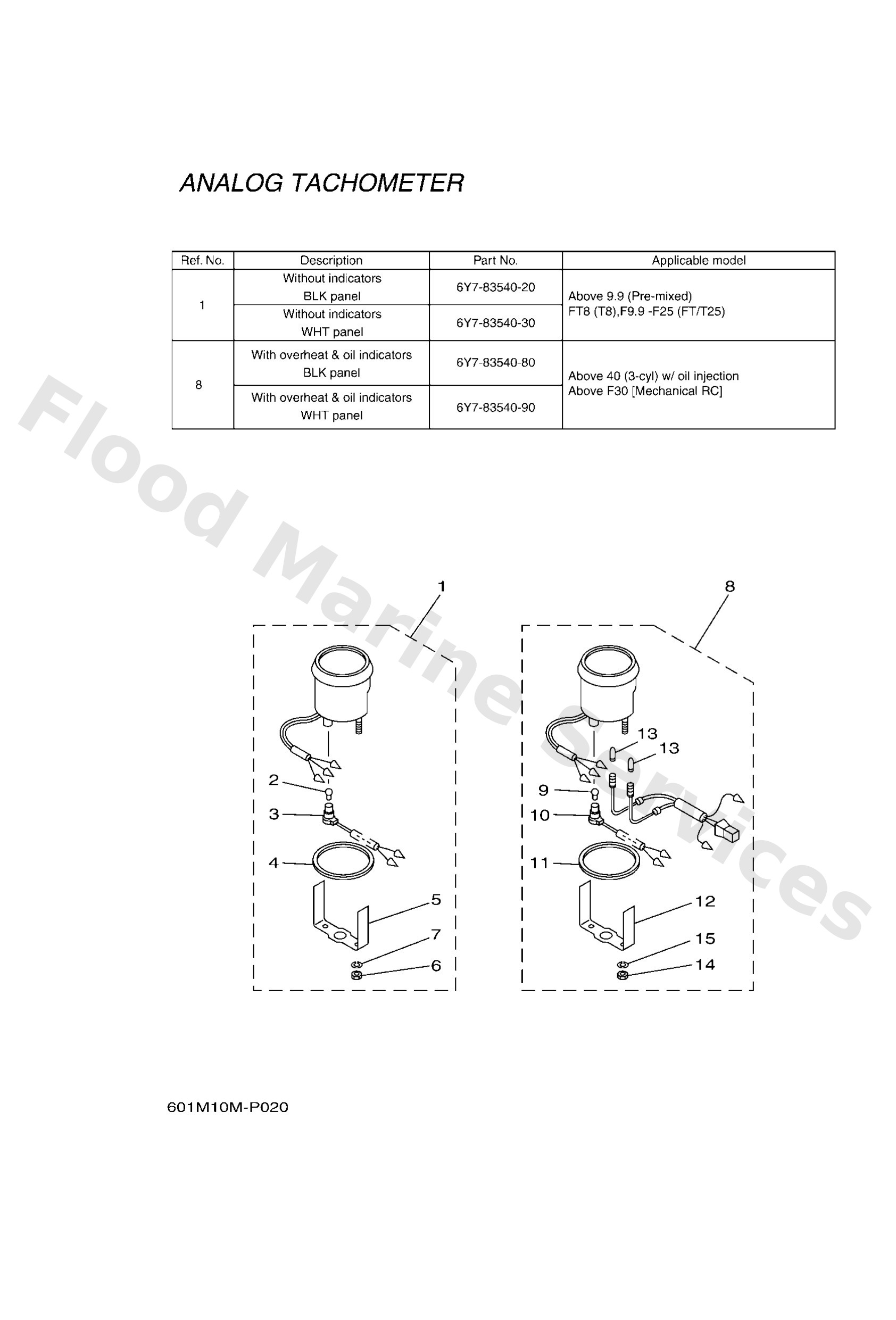

Diagram: METER 2
Parts List
Reference
Description
Price
1
6Y78354030
UR WITHOUT OIL LAMP
Tachometer assembly
Loading…
↗
1
6Y78354020
UR WITHOUT OIL LAMP
Tachometer assembly
Loading…
↗
2
6Y58351700
Bulb (12v-1.7w)
Loading…
↗
3
6Y58353640
FOR 6Y7-83540-20
Socket, meter
Loading…
↗
3
6Y58353610
FOR 6Y7-83540-30
Socket, meter
Loading…
↗
4
6Y58352300
Damper
Loading…
↗
5
6Y58351400
Plate, fitting
Loading…
↗
6
9538005600
Nut, hexagon (663)
Loading…
↗
7
9299005100
Ybs67-5 washer, spring
Loading…
↗
8
6Y78354090
UR WITH OIL/TEMP LAMP
Tachometer assembly
Loading…
↗
8
6Y78354080
UR WITH OIL/TEMP LAMP
Tachometer assembly
Loading…
↗
13
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…
↗
