RIGGING - METER (2014)
METER 3

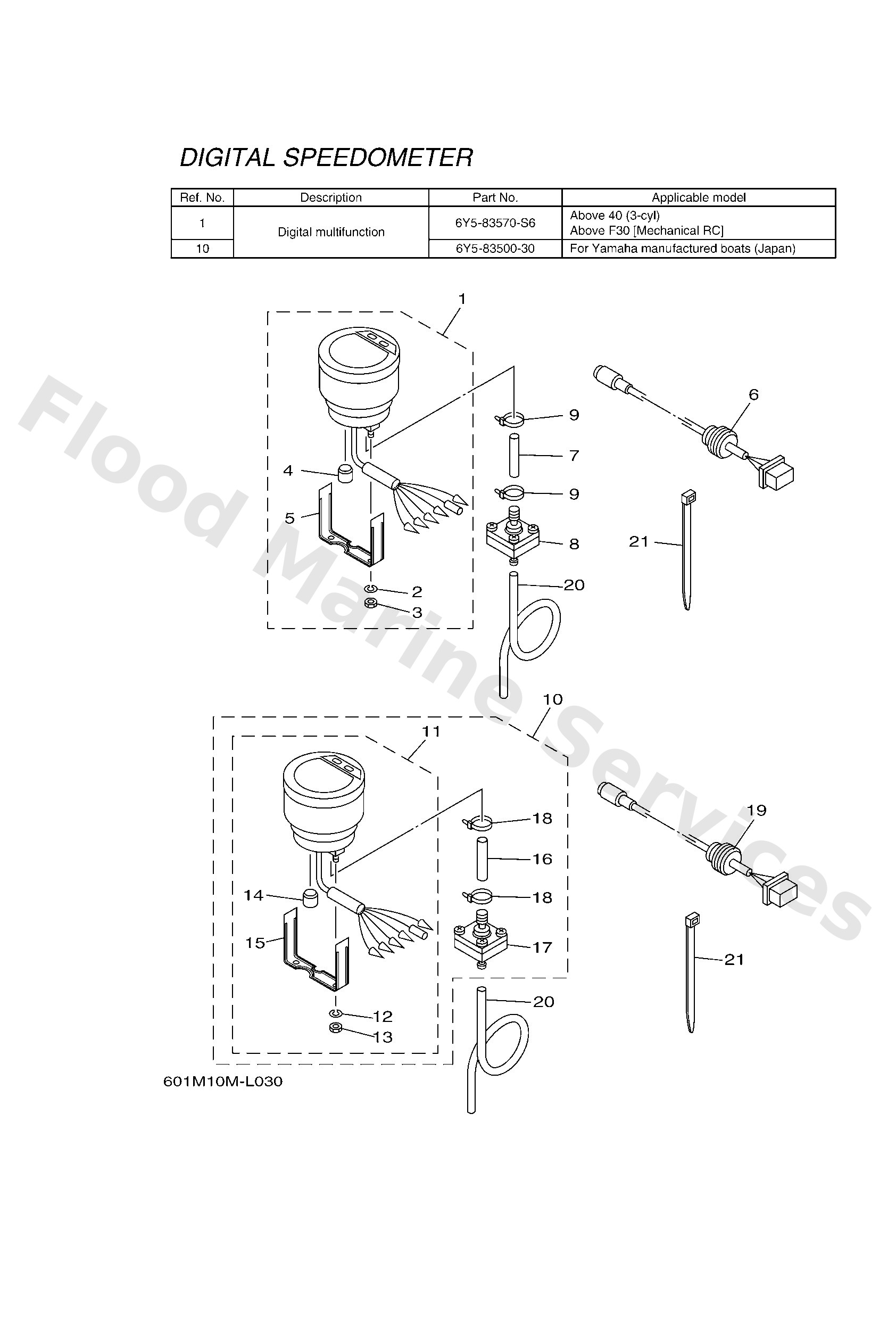

Diagram: METER 3
Parts List
Reference
Description
Price
1
6Y583570S6
Speedometer assembly
Loading…
↗
2
9299004100
Ybs67-4 washer, spring
Loading…
↗
3
9538004600
Nut,hex
Loading…
↗
4
6Y583533T2
Grommet
Loading…
↗
5
6Y58355XT1
Bracket, meter 1
Loading…
↗
6
6Y587122S0
AP
Cord assembly 1
Loading…
↗
7
6Y58355731
Tube
Loading…
↗
8
6Y58372800
Connector assembly
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
6Y58350030
Meter assembly
Loading…
↗
11
6Y58357030
Speedometer assembly
Loading…
↗
20
6Y58355700
Tube (8m)
Loading…
↗
