RIGGING - METER (2016)
METER 5

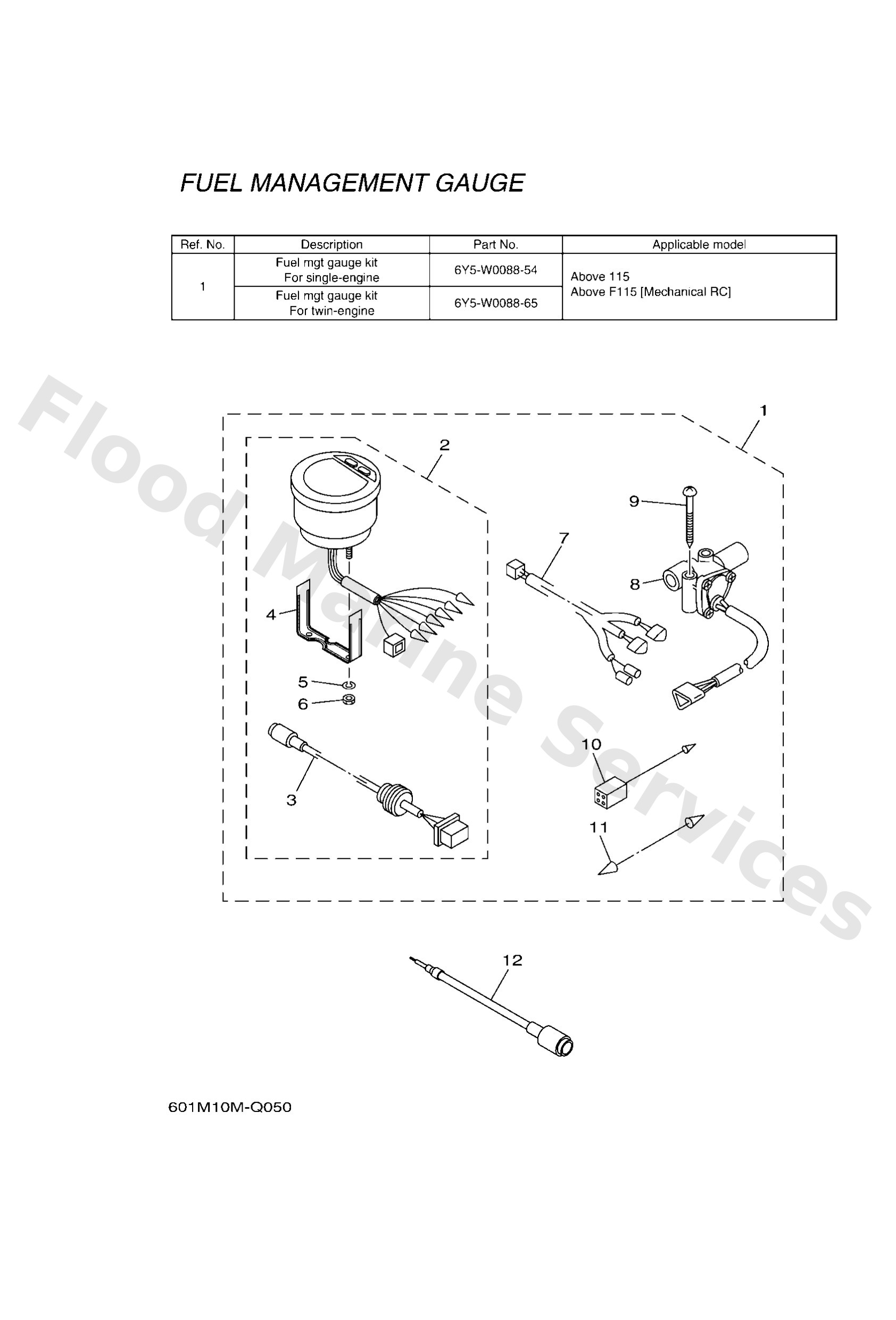

Diagram: METER 5
Parts List
Reference
Description
Price
1
6Y5W008865
UR
Digital Fuel Meter Kit (Twin)
Loading…
↗
1
6Y5W008854
UR
Digital fuel meter kit (single
Loading…
↗
2
6Y58350F01
Fuel meter movement assembly
Loading…
↗
3
6Y587122S0
Cord assembly 1
Loading…
↗
4
6Y58355XT1
Bracket, meter 1
Loading…
↗
5
9299004100
Ybs67-4 washer, spring
Loading…
↗
6
9538004600
Nut,hex
Loading…
↗
7
6Y583553F1
Wire, lead
Loading…
↗
8
6Y58575202
FOR 6Y5-W0088-54
Sender unit assembly, fuel meter
Loading…
↗
9
9015806003
FOR 6Y5-W0088-54
Screw, wood
Loading…
↗
10
6Y58211700
Wire, lead
Loading…
↗
11
7038253100
FOR 6Y5-W0088-65
Wire, lead
Loading…
↗
12
6Y585721F0
AP
Wire, lead
Loading…
↗
