RIGGING - METER (2008)
METER 6

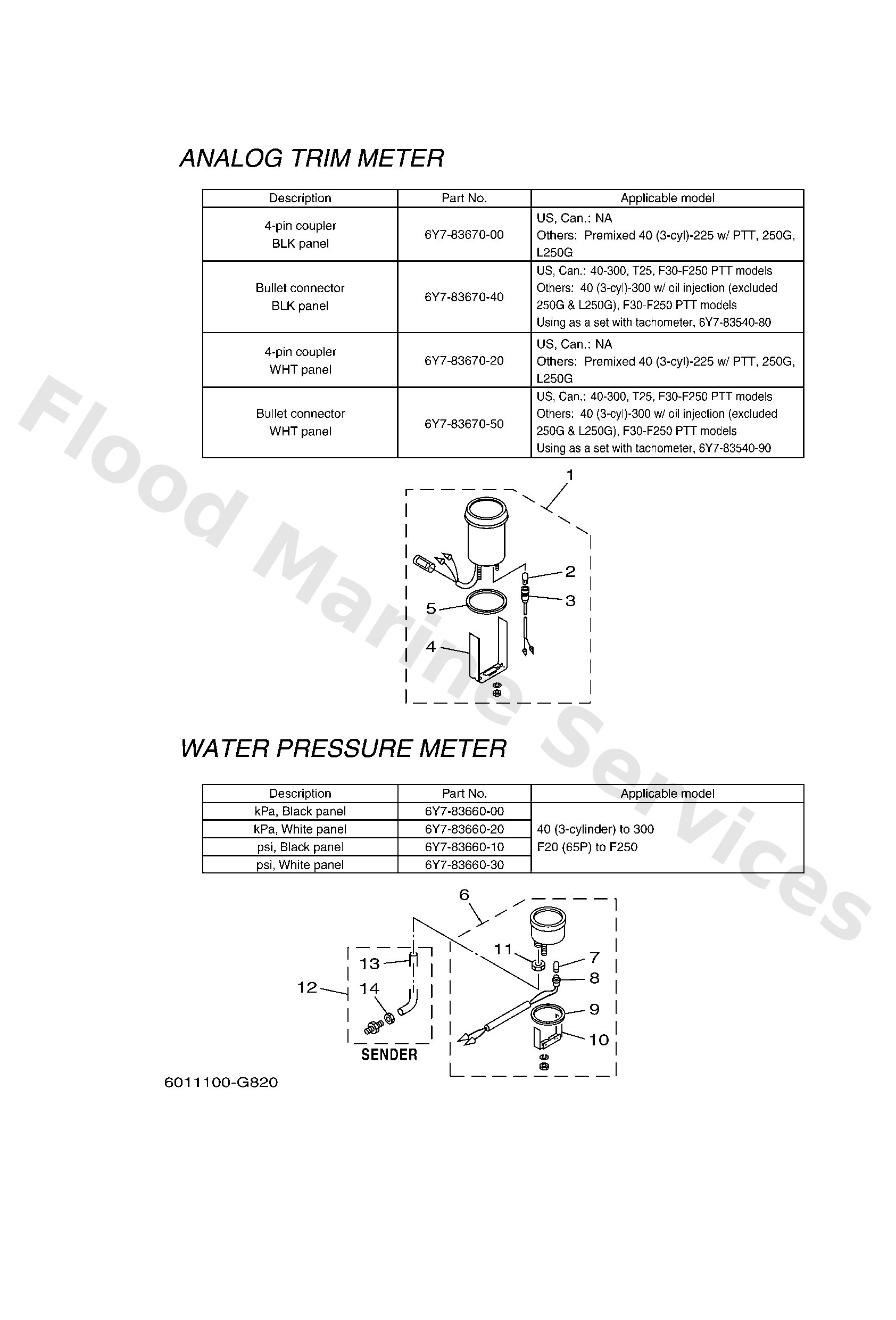

Diagram: METER 6
Parts List
Reference
Description
Price
1
6Y78367040
UR
Trim meter assembly.
Loading…
↗
1
6Y78367020
UR
Trim meter assembly.
Loading…
↗
1
6Y78367050
UR
Trim Meter assembly.
Loading…
↗
1
6Y78367000
UR
Trim meter assembly.
Loading…
↗
2
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…
↗
3
6Y58353600
Socket, meter
Loading…
↗
4
6Y58354400
Plate, fitting
Loading…
↗
5
6888366400
Damper
Loading…
↗
6
6Y78366010
UR
Water Pressure Meter assembly
Loading…
↗
6
6Y78366030
UR
Water Pressure Meter assembly
Loading…
↗
6
6Y78366020
UR
Water Pressure Meter assembly
Loading…
↗
6
6Y78366000
UR
Water pressure meter assembly
Loading…
↗
10
6888366500
Plate, fitting
Loading…
↗
11
6638366800
Nut, nipple
Loading…
↗
12
6888366700
Sender
Loading…
↗
13
6888366600
Tube
Loading…
↗
