RIGGING - METER (2016)
METER 7

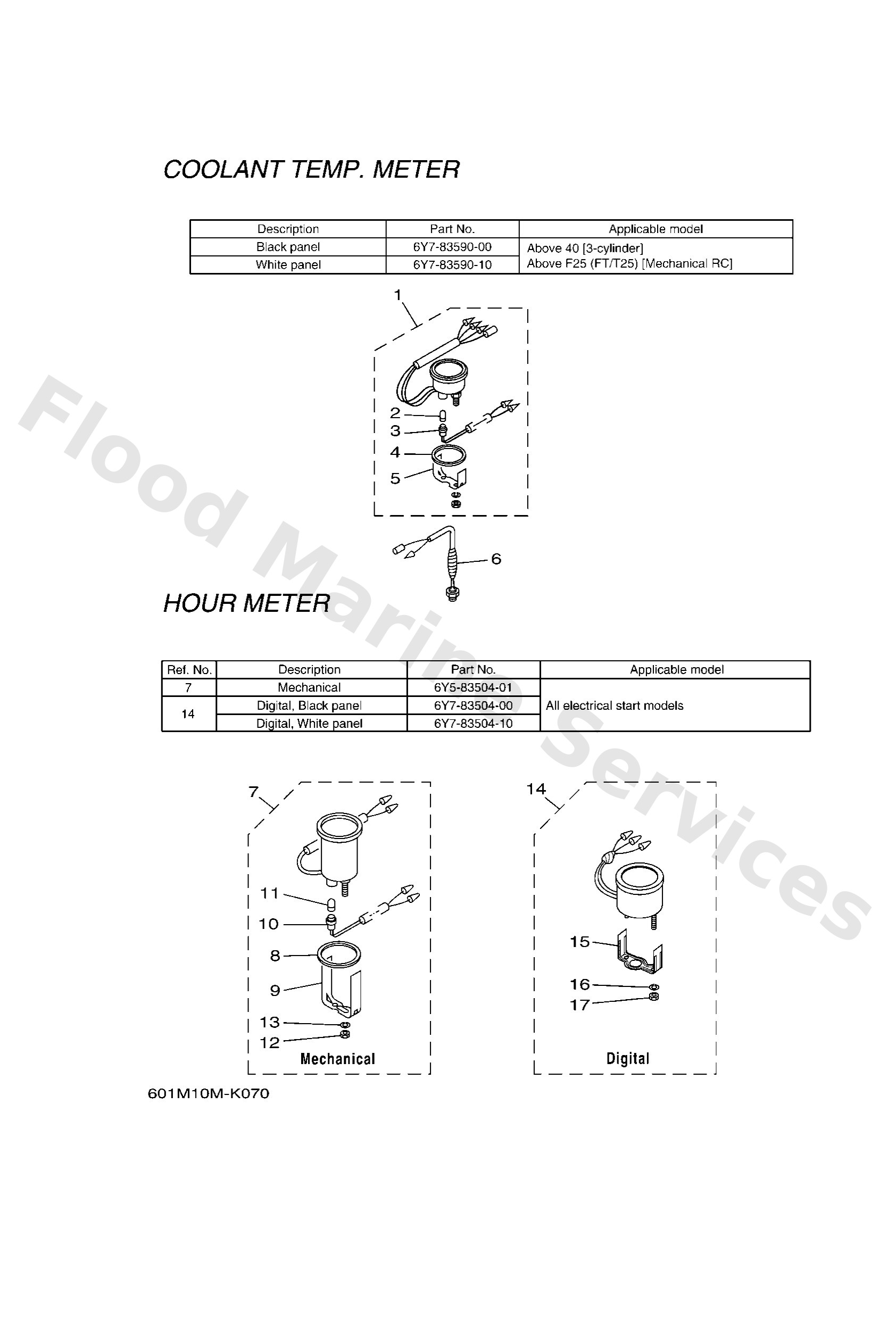

Diagram: METER 7
Parts List
Reference
Description
Price
1
6Y78359010
UR
Water temperature assembly
Loading…
↗
1
6Y78359000
UR
Water temperature assembly
Loading…
↗
2
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…
↗
3
6Y58353600
Socket, meter
Loading…
↗
4
6888366400
Damper
Loading…
↗
5
6Y58354400
Plate, fitting
Loading…
↗
6
6888359100
Thermo unit
Loading…
↗
7
6Y58350401
Hour meter assembly
Loading…
↗
9
6Y58357700
Plate, fitting
Loading…
↗
12
9530304600
Nut, hexagon (663)
Loading…
↗
13
9299004100
Ybs67-4 washer, spring
Loading…
↗
14
6Y78350410
UR
Hour meter assembly
Loading…
↗
14
6Y78350400
UR
Hour meter assembly
Loading…
↗
15
6Y58355XH0
Bracket, meter 1
Loading…
↗
17
9538004600
Nut,hex
Loading…
↗
