Yamaha Outboard Parts - METER PANEL 1 - ME730TIH (2006) | Flood Marine

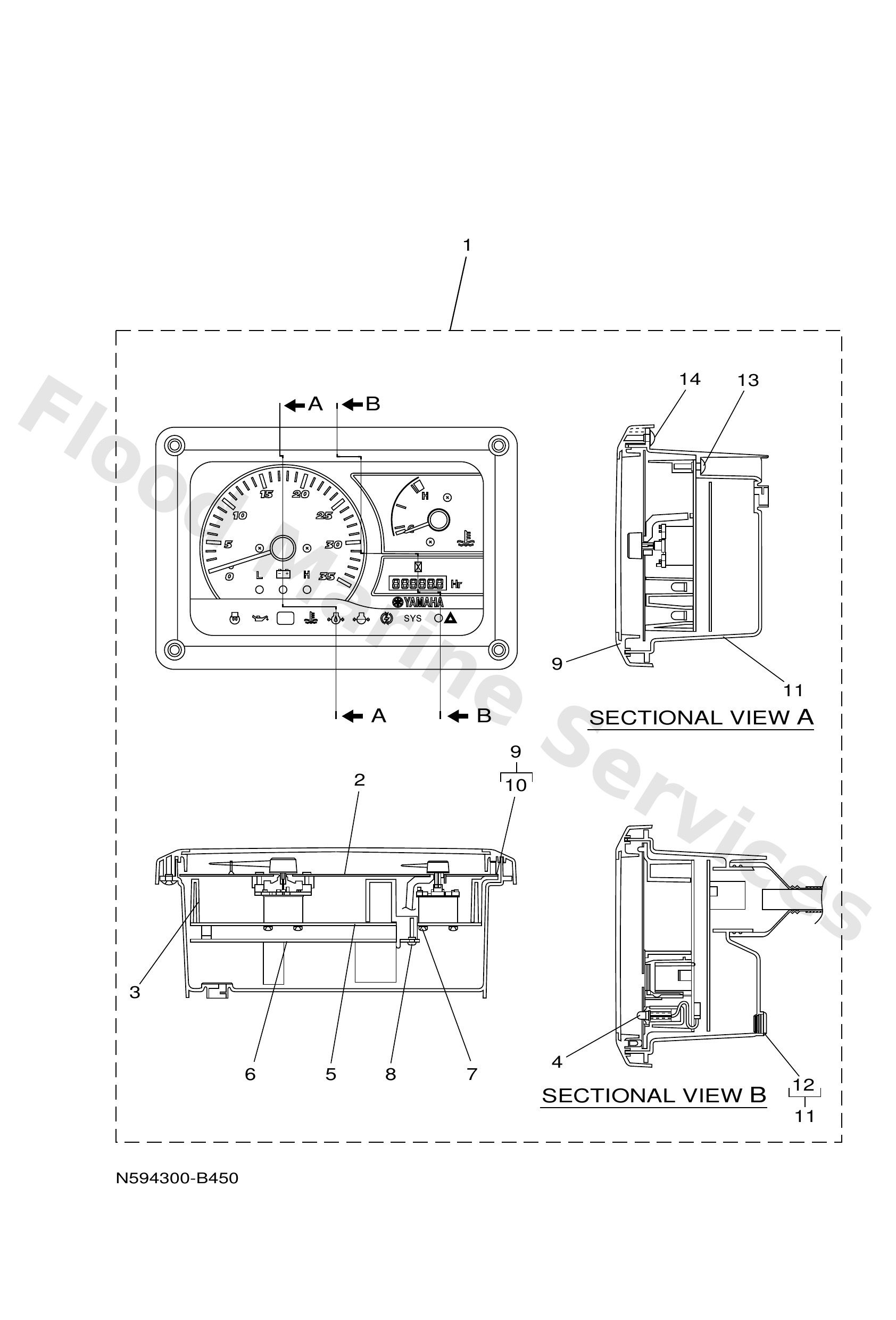

Diagram: METER PANEL 1

Diagram

Parts List

Reference
Description
Price


1
N598360010
Meter panel assembly.
Loading…

↗
1
3 CASE 1
-
Loading…

↗
2
N598350A00
Meter Comp.
Loading…

↗
4
N598372000
L.e.d Ass'y
Loading…

↗
5
N598339700
Circuit Board assembly.
Loading…

↗
6
N598339R00
Circuit Board assembly.
Loading…

↗
6
5
90480-13M24
Loading…

↗
7
N598362Y00
Screw, Special
Loading…

↗
8
9770730514
Screw, tapping(3nx)
Loading…

↗
9
N598361100
Panel, Meter
Loading…

↗
9
14 SCREW, TAPPING 8
D Om Te
Loading…

↗
10
N598368V00
Packing
Loading…

↗
11
N598361700
Cover, Rear
Loading…

↗
12
N598363400
Grommet
Loading…

↗
13
9770740016
Screw, truss tap.
Loading…

↗
