Helm Master Joystick Controller System (2017)
MULTI DISPLAY (QUAD)

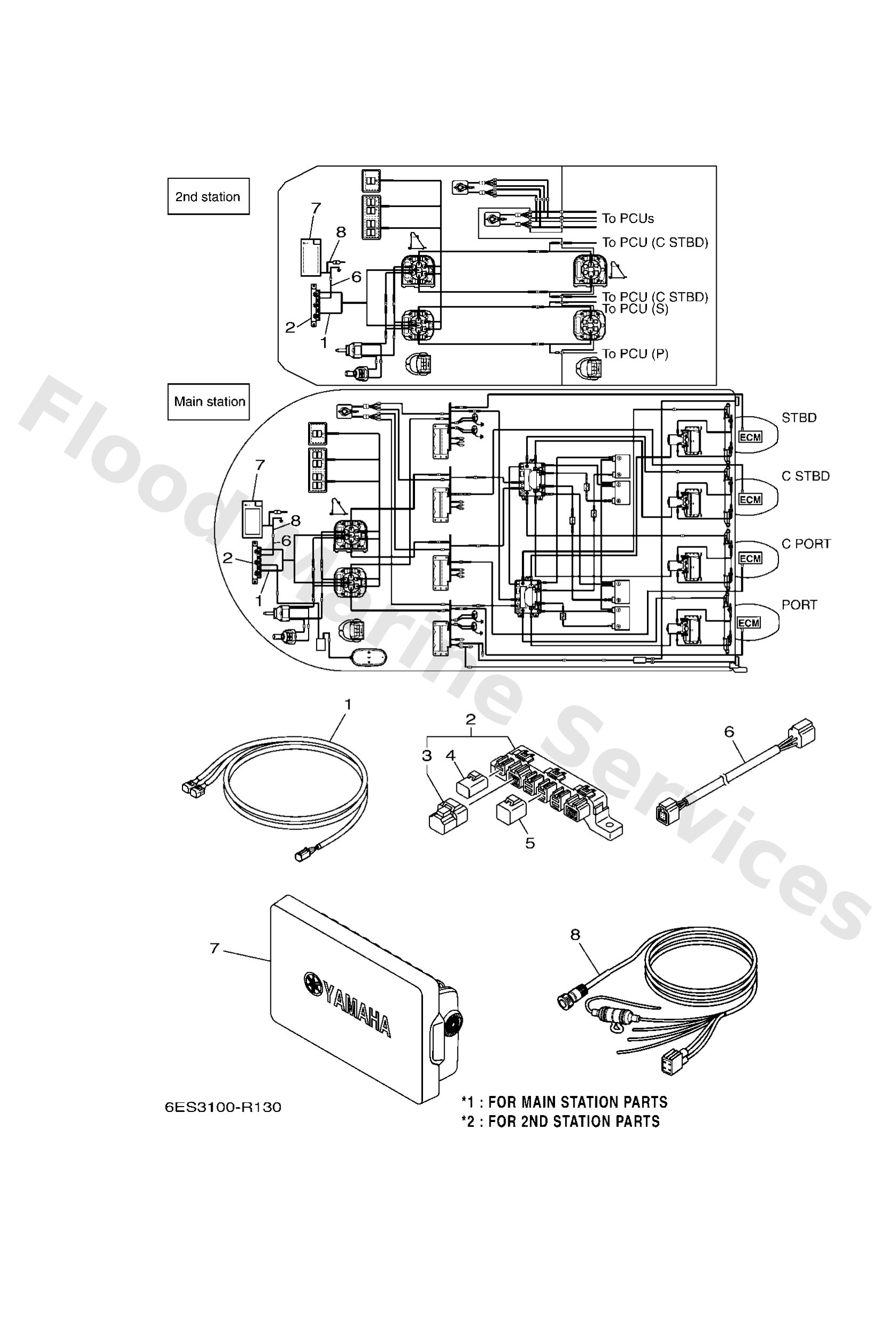

Diagram: MULTI DISPLAY (QUAD)
Parts List
Reference
Description
Price
1
6ES8355371
Remote ctr-hub harness, 3&4
Loading…
↗
2
6Y88192001
Multi-hub
Loading…
↗
3
6Y88537101
End of line resister
Loading…
↗
4
6Y88258201
Red cap 1 (2pin)
Loading…
↗
5
6Y88258211
*1
White cap 1 (4pin)
Loading…
↗
6
6Y88252111
Pigtail bus wire 0.6m-2ft
Loading…
↗
7
6YD8371000
REFER TO FIG.10
Cl7 Display
Loading…
↗
8
6YD8355300
Wire, lead
Loading…
↗
