Helm Master Joystick Controller System (2013)
MULTI DISPLAY (TRIPLE)

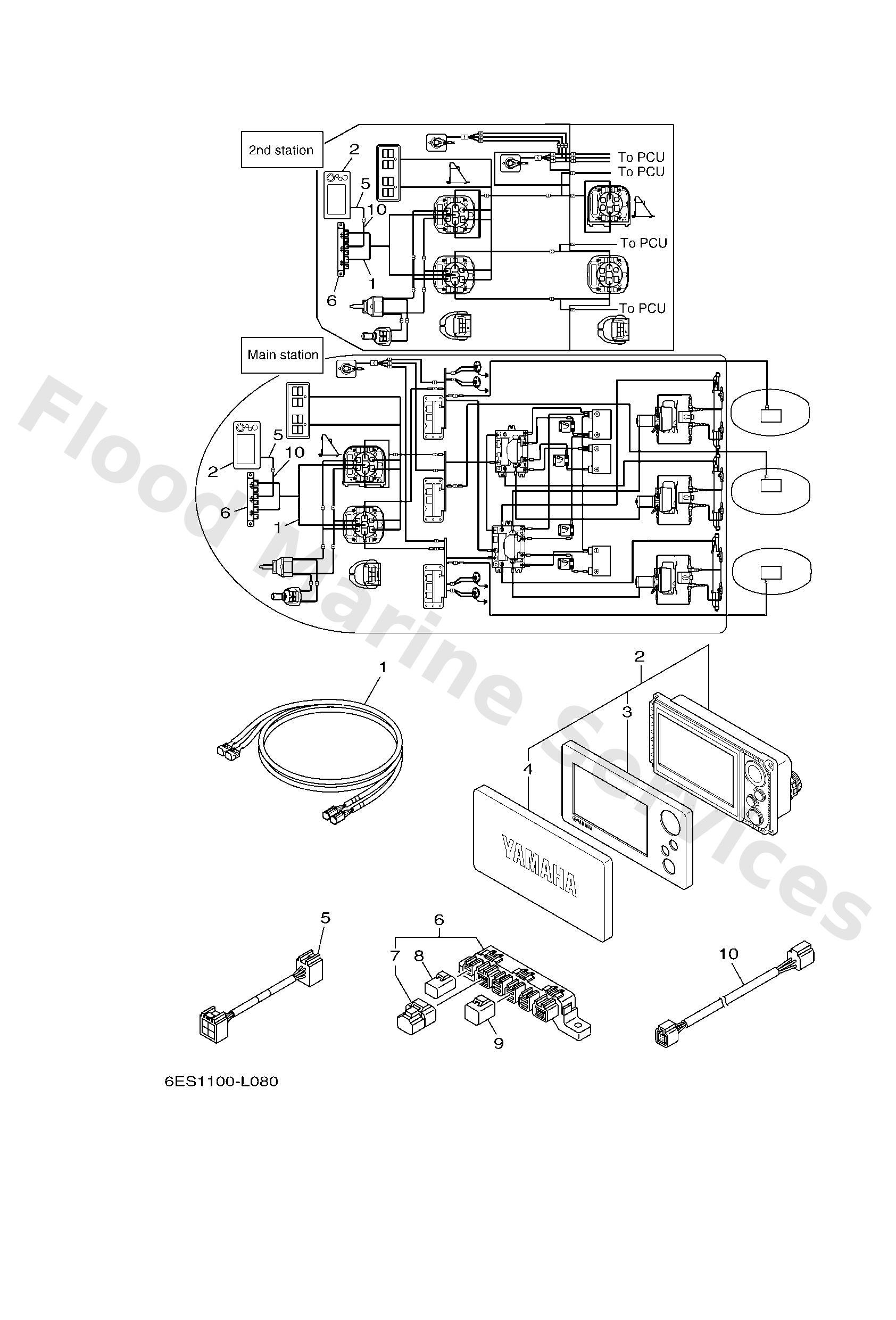

Diagram: MULTI DISPLAY (TRIPLE)
Parts List
Reference
Description
Price
1
6ES8355370
Remote ctr-hub harness, 3&4
Loading…
↗
2
6Y98371010
Multi display assembly
Loading…
↗
3
6Y98351200
Cover, front
Loading…
↗
4
6Y98727800
Cover, meter
Loading…
↗
5
6Y98355340
Wire, lead
Loading…
↗
6
6Y88192001
Multi-hub
Loading…
↗
7
6Y88537101
End of line resister
Loading…
↗
8
6Y88258201
Red cap 1 (2pin)
Loading…
↗
9
6Y88258211
White cap 1 (4pin)
Loading…
↗
10
6Y88252111
Pigtail bus wire 0.6m-2ft
Loading…
↗
