115BETO (1993)
Magneto

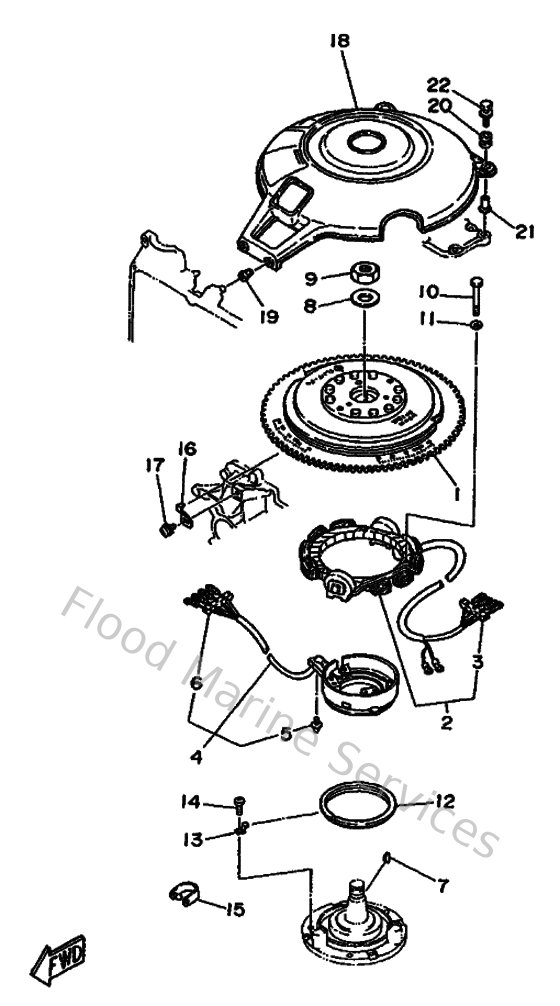

Diagram: Magneto
Parts List
Reference
Description
Price
2
6E5855101000
Stator Assembly
Loading…
↗
3
9048006M1600
Grommet
Loading…
↗
4
6E5855801200
Coil, Pulser
Loading…
↗
5
663855180000
Joint, ball
Loading…
↗
7
902800504900
Key, woodruff (12r)
Loading…
↗
8
9020121M1800
Washer, plate (663)
Loading…
↗
9
901702013700
Nut, hexagon(663)
Loading…
↗
10
973130605500
Bolt, hexagon w/w deep recess
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
688416110000
Retainer, magneto base 1
Loading…
↗
13
688416120000
Retainer, magneto base 2
Loading…
↗
14
985030601800
Screw, pan head(6e5)
Loading…
↗
16
6E5813320000
Plate, timing
Loading…
↗
17
979850621000
Screw pan head
Loading…
↗
18
6E5813370100
Cover, flywheel
Loading…
↗
19
6G5823170000
Damper
Loading…
↗
20
6A0823170000
Damper, ignition coil
Loading…
↗
21
624425420000
Collar
Loading…
↗
22
9011906M5900
Bolt, with washer
Loading…
↗
