220AETL (1985)
Magneto

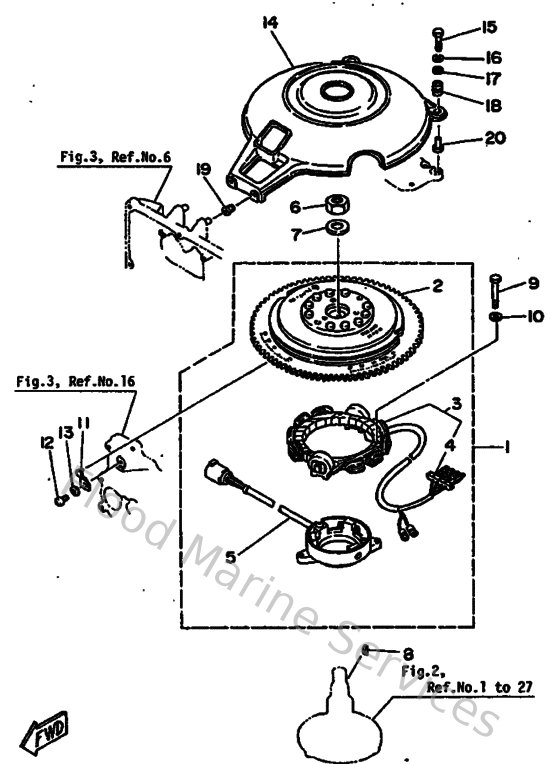

Diagram: Magneto
Parts List
Reference
Description
Price
3
6G5855101000
Stator Assembly
Loading…
↗
4
9048006M1600
Grommet
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
9020121M1800
Washer, plate (663)
Loading…
↗
8
902800501500
Key, woodruff
Loading…
↗
9
975950655500
Bolt, hexagon w/w deep recess
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
6E5813320000
Plate, timing
Loading…
↗
12
978030601000
Screw pan head
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
15
973130603000
Bolt
Loading…
↗
16
929030610000
Washer(6a1)
Loading…
↗
17
9020106M6200
Washer, plate (6e5)
Loading…
↗
18
663823170000
Damper, ignition coil
Loading…
↗
19
6G5823170000
Damper
Loading…
↗
20
624425420000
Collar
Loading…
↗
