225AETOL (1987)
Magneto

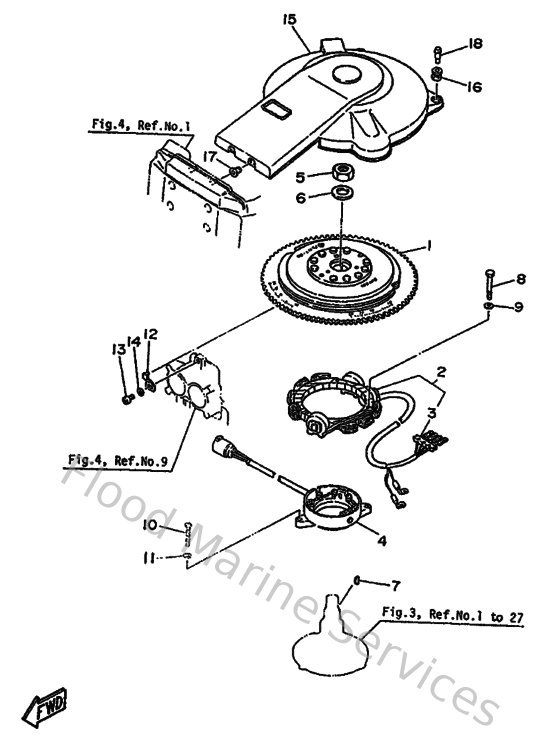

Diagram: Magneto
Parts List
Reference
Description
Price
2
6G5855101100
Stator assembly
Loading…
↗
5
901702013700
Nut, hexagon(663)
Loading…
↗
6
9020121M1800
Washer, plate (663)
Loading…
↗
7
902800501500
Key, woodruff
Loading…
↗
8
975950655500
Bolt, hexagon w/w deep recess
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
978850603000
Screw, pan head(6e0)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6E5813320000
Plate, timing
Loading…
↗
13
978030601000
Screw pan head
Loading…
↗
16
663823170000
Damper, ignition coil
Loading…
↗
17
6G5823170000
Damper
Loading…
↗
18
6K7813380000
Stay
Loading…
↗
