25DMH (1992)
Magneto

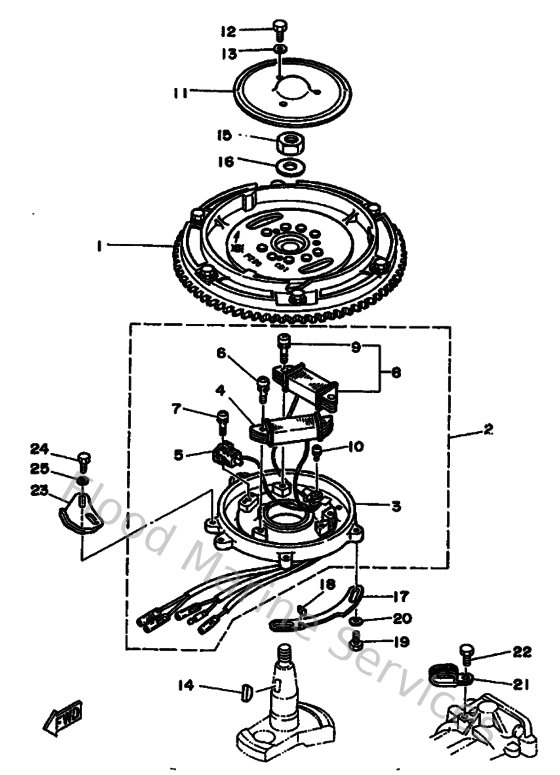

Diagram: Magneto
Parts List
Reference
Description
Price
4
695855207000
Charge coil assembly
Loading…
↗
5
695855807000
Coil, Pulser
Loading…
↗
6
901590503900
Screw panhead (695)
Loading…
↗
7
985070501600
Screw, pan head(jj6)
Loading…
↗
8
69581303A000
Lighting Coil Assembly
Loading…
↗
9
985070502500
Screw, pan head(4my)
Loading…
↗
11
648813620000
Cover Hole
Loading…
↗
12
970130601200
Bolt(gh1)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
902800501300
Key, woodruff
Loading…
↗
15
9017912M0400
Nut, flange
Loading…
↗
16
9020113M4200
Washer (694)
Loading…
↗
17
695416150000
Stopper, Magneto Base
Loading…
↗
18
695441940000
Cap
Loading…
↗
21
9046106M0100
Clamp (6a4)
Loading…
↗
22
973130601000
Bolt
Loading…
↗
23
695412130094
Cam, Accel
Loading…
↗
24
973950501200
Bolt, hexagon
Loading…
↗
25
929900560000
Washer, plain (646)
Loading…
↗
