25NEMO (1988)
Magneto

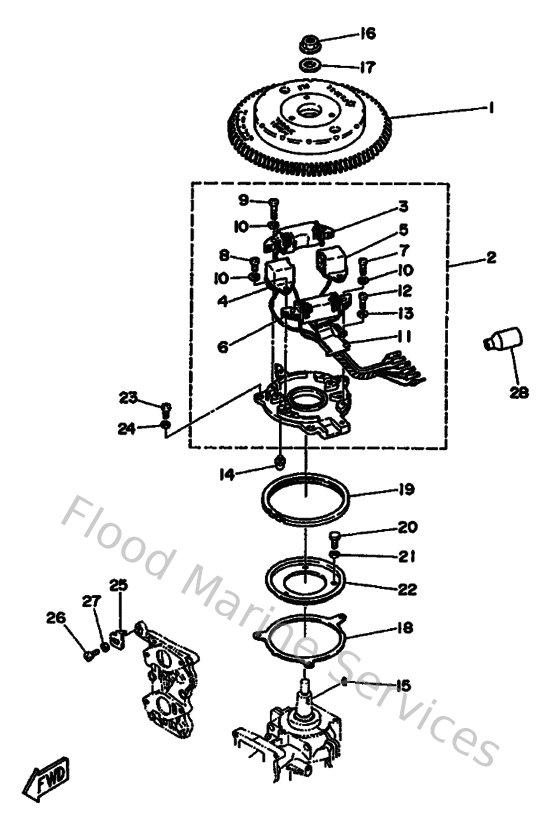

Diagram: Magneto
Parts List
Reference
Description
Price
7
985010502000
Screw, pan head
Loading…
↗
8
985010501000
Screw, pan head(62x)
Loading…
↗
9
985030502500
Screw, panhead (a93)
Loading…
↗
10
929900510000
Ybs67-5 washer, spring
Loading…
↗
11
6G1855487000
Cord, clamp
Loading…
↗
12
985800400800
Screw, pan head (713)
Loading…
↗
13
929020410000
Ybs67-4 washer, spring
Loading…
↗
14
663855180000
Joint, ball
Loading…
↗
15
902800501300
Key, woodruff
Loading…
↗
16
9017912M0400
Nut, flange
Loading…
↗
17
9020113M4200
Washer (694)
Loading…
↗
18
6N0G16110000
Retainer, magneto base 1
Loading…
↗
19
695416130000
Plate, base friction
Loading…
↗
20
973130601200
Bolt(gh1)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
6G1416120000
Retainer, magneto base
Loading…
↗
23
978850501000
Screw, pan head(62x)
Loading…
↗
24
929900560000
Washer, plain (646)
Loading…
↗
25
6L2813320000
Plate, timing
Loading…
↗
26
985800501000
Screw, pan head(62x)
Loading…
↗
28
6L2825990000
Cover, connecter
Loading…
↗
