30AMH (1985)
Magneto

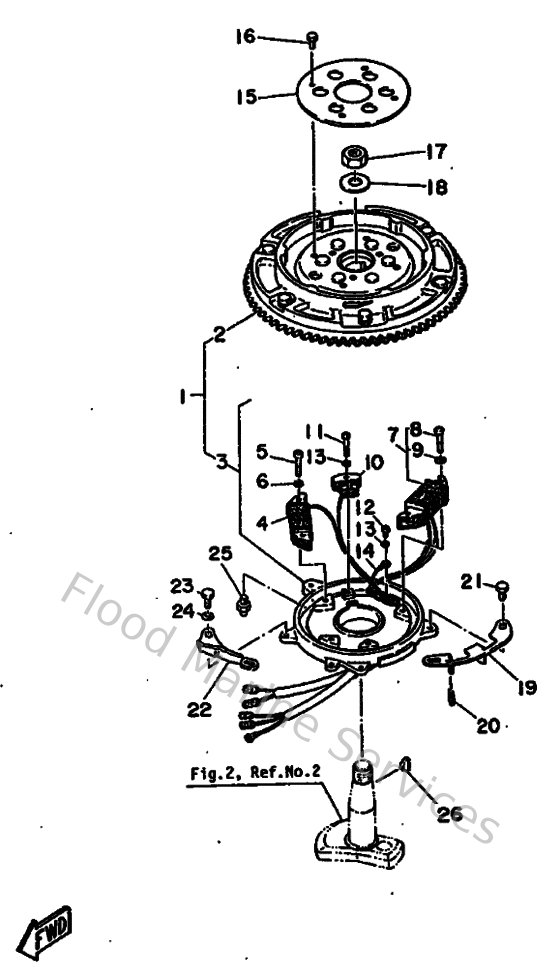

Diagram: Magneto
Parts List
Reference
Description
Price
3
68985560A000
Base assembly
Loading…
↗
4
689813114000
Coil, source
Loading…
↗
5
985010502500
Screw, panhead (a93)
Loading…
↗
6
929010510000
Ybs67-5 washer, spring
Loading…
↗
9
929900510000
Ybs67-5 washer, spring
Loading…
↗
10
689855804000
Coil, Pulser
Loading…
↗
11
985010402500
Screw, pan head
Loading…
↗
12
985010400600
Screw, pan head
Loading…
↗
13
929900410000
Ybs67-4 washer, spring
Loading…
↗
16
973130801200
Bolt(62e)
Loading…
↗
17
9017916M0500
Nut (689)
Loading…
↗
18
9020116M4400
Washer (689)
Loading…
↗
19
689416158000
Stopper, Magneto Base
Loading…
↗
20
689441940000
Cap
Loading…
↗
21
970850601000
Bolt
Loading…
↗
23
973130501000
Bolt, hexagon
Loading…
↗
24
929030560000
Washer, plain (646)
Loading…
↗
25
663855180000
Joint, ball
Loading…
↗
26
902800501500
Key, woodruff
Loading…
↗
