50DEMTO (1993)
Magneto

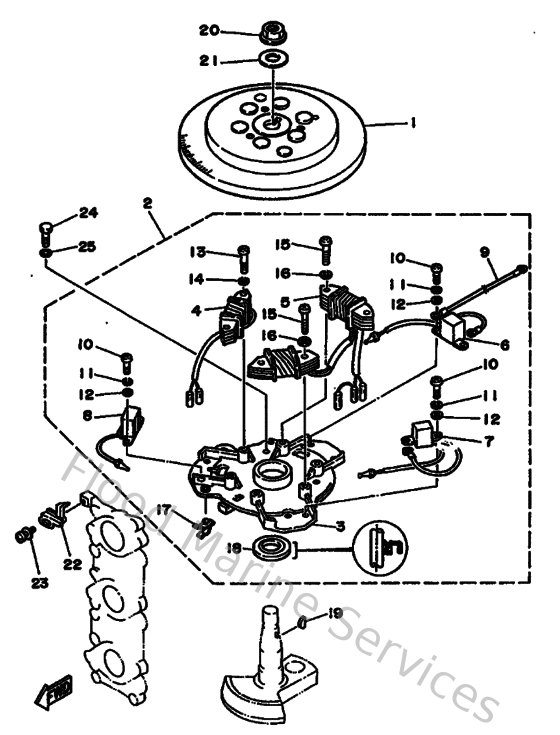

Diagram: Magneto
Parts List
Reference
Description
Price
1
6H5855501000
Rotor assembly
Loading…
↗
2
6H5855600200
Base Assembly
Loading…
↗
3
6H4153590494
Housing, oil seal
Loading…
↗
4
63D855200100
Coil, charge
Loading…
↗
5
6H5855330100
Coil, Lighting
Loading…
↗
6
6H5855800000
Coil, Pulser
Loading…
↗
7
6H5855801000
Coil, Pulser
Loading…
↗
10
985800501200
Screw,pan head (646)
Loading…
↗
11
929010510000
Ybs67-5 washer, spring
Loading…
↗
12
929010560000
Washer, plain (646)
Loading…
↗
13
985170602500
Screw, pan head (76t)
Loading…
↗
14
929900610000
Washer(6a1)
Loading…
↗
15
925010603000
Screw, pan head(6e0)
Loading…
↗
17
9046403M1500
Clamp(6j8)
Loading…
↗
18
931022309600
Oil seal (23x38x7-648)
Loading…
↗
19
6H4115450000
Key, woodruff
Loading…
↗
20
9017916M0500
Nut (689)
Loading…
↗
21
9020116M4400
Washer (689)
Loading…
↗
22
6H4813320000
Plate, timing
Loading…
↗
23
979850521000
Screw, With Washer
Loading…
↗
24
973130601800
Bolt, hexagon
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
