60FETO (1989)
Magneto

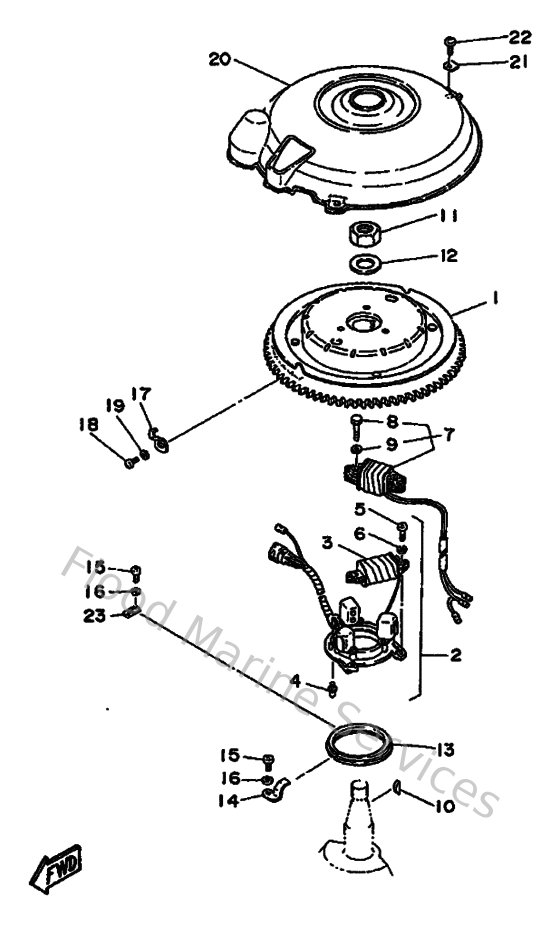

Diagram: Magneto
Parts List
Reference
Description
Price
1
6K585550A000
Rotor assembly
Loading…
↗
2
6H385510A000
Stator assembly
Loading…
↗
3
6H3855200000
Charge coil assembly
Loading…
↗
4
663855180000
Joint, ball
Loading…
↗
5
978850501600
Screw, pan head(6b0)
Loading…
↗
6
929900510000
Ybs67-5 washer, spring
Loading…
↗
7
6H381303A000
Lighting coil assembly
Loading…
↗
8
973130603000
Bolt
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
902800504900
Key, woodruff (12r)
Loading…
↗
11
901702013700
Nut, hexagon(663)
Loading…
↗
12
9020121M1800
Washer, plate (663)
Loading…
↗
13
6H3416110000
Retainer, Magneto Base
Loading…
↗
14
6H3416120000
Retainer, magneto base 2
Loading…
↗
15
925800601200
Screw, pan head(62j)
Loading…
↗
17
6E5813320000
Plate, timing
Loading…
↗
18
978030601000
Screw pan head
Loading…
↗
20
6H3813370000
Cover, flywheel
Loading…
↗
21
9020906M0400
Washer
Loading…
↗
22
925030601500
Screw, pan
Loading…
↗
23
6H3416121000
Retainer, magneto base 2
Loading…
↗
