70BETO (1997)
Magneto

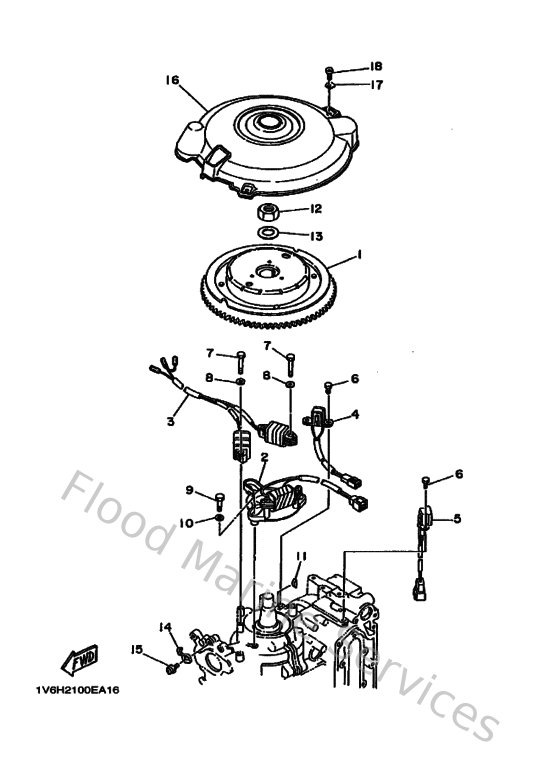

Diagram: Magneto
Parts List
Reference
Description
Price
1
6H2855500000
Rotor assembly
Loading…
↗
2
6H2855200100
Coil, charge
Loading…
↗
4
6H2855800100
Coil, pulser
Loading…
↗
5
6H2858950100
Crank position sender
Loading…
↗
6
970950501200
Bolt, hexagon
Loading…
↗
7
970950603500
Bolt(j52)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
970950602500
Bolt
Loading…
↗
11
902800504900
Key, woodruff (12r)
Loading…
↗
12
901702013700
Nut, hexagon(663)
Loading…
↗
13
9020121M1800
Washer, plate (663)
Loading…
↗
14
6E5813320000
Plate, timing
Loading…
↗
15
979850621000
Screw pan head
Loading…
↗
16
6H3813370100
Cover, flywheel
Loading…
↗
17
9020906M0400
Washer
Loading…
↗
18
978850601600
Screw, pan head(6b0)
Loading…
↗
