80AETOL (1993)
Magneto

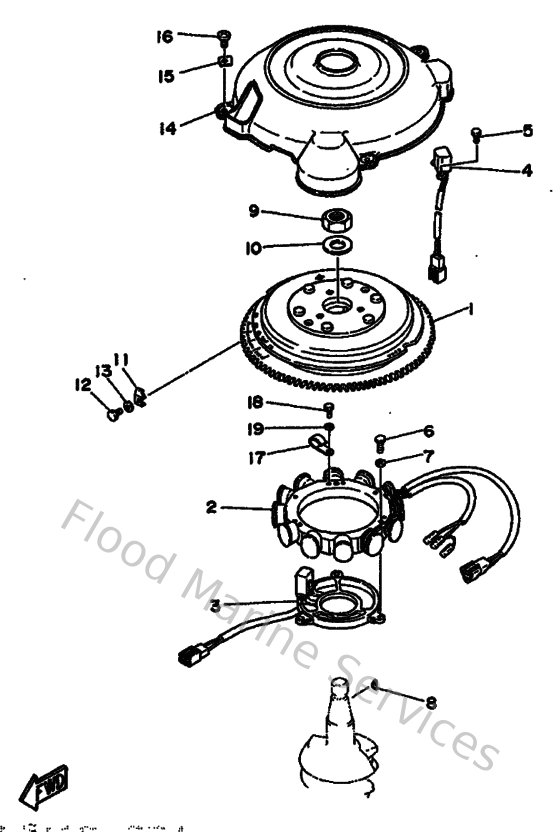

Diagram: Magneto
Parts List
Reference
Description
Price
1
6H0855500000
Rotor assembly
Loading…
↗
2
6H0855100100
Stator Assembly
Loading…
↗
3
6H0855800100
Coil, pulser
Loading…
↗
4
6H2858950100
Crank position sender
Loading…
↗
5
973950501200
Bolt, hexagon
Loading…
↗
6
970950604000
Bolt (682)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
902800504900
Key, woodruff (12r)
Loading…
↗
9
901702013700
Nut, hexagon(663)
Loading…
↗
10
9020121M1800
Washer, plate (663)
Loading…
↗
11
688813320100
Plate, timing
Loading…
↗
12
973950601000
Bolt
Loading…
↗
14
6H1813370100
Cover, flywheel
Loading…
↗
15
9020906M0400
Washer
Loading…
↗
16
978850601200
Screw, pan head(62j)
Loading…
↗
17
9046506M2800
Clamp(6h4)
Loading…
↗
18
970130601200
Bolt(gh1)
Loading…
↗
