90AETOL (1987)
Magneto

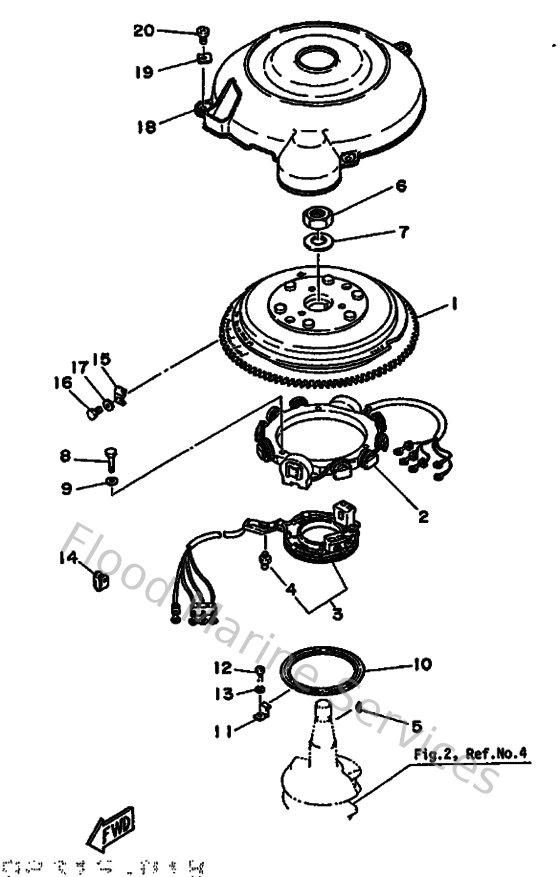

Diagram: Magneto
Parts List
Reference
Description
Price
1
688855501200
Rotor assembly
Loading…
↗
2
688855101100
Stator Assembly
Loading…
↗
3
688855801200
Coil, Pulser
Loading…
↗
4
663855180000
Joint, ball
Loading…
↗
5
902800501500
Key, woodruff
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
9020121M1800
Washer, plate (663)
Loading…
↗
8
973130602500
Bolt
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
688416110000
Retainer, magneto base 1
Loading…
↗
11
688416120000
Retainer, magneto base 2
Loading…
↗
12
978030601200
Screw, pan head(62j)
Loading…
↗
13
929030610000
Washer(6a1)
Loading…
↗
15
688813320100
Plate, timing
Loading…
↗
16
973130601000
Bolt
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
6H1813370000
Cover, flywheel
Loading…
↗
19
9020906M0400
Washer
Loading…
↗
