F9.9BMH (1986)
Magneto

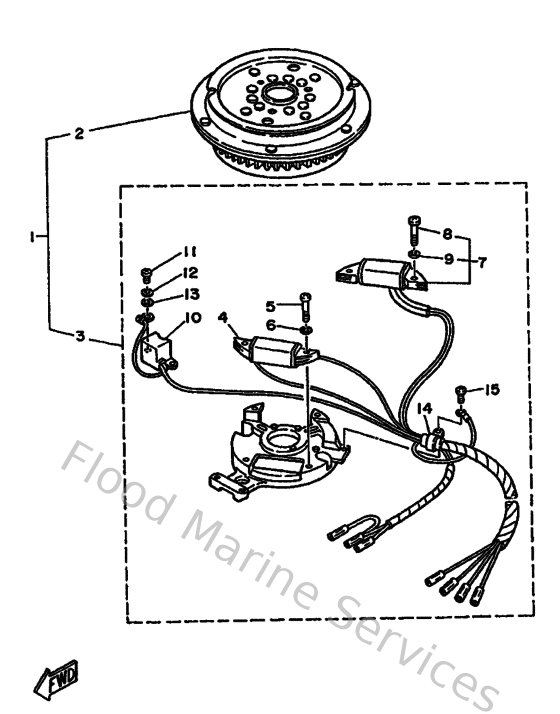

Diagram: Magneto
Parts List
Reference
Description
Price
5
978020502500
Screw, panhead (a93)
Loading…
↗
6
929020510000
Ybs67-5 washer, spring
Loading…
↗
11
985800501200
Screw,pan head (646)
Loading…
↗
12
929030510000
Ybs67-5 washer, spring
Loading…
↗
13
929030560000
Washer, plain (646)
Loading…
↗
14
445813282000
Clamp, read
Loading…
↗
15
978020400800
Screw, pan head (713)
Loading…
↗
1
6G985500F000
Cdi Magneto Assembly
Loading…
↗
8
985800552500
Screw, panhead (a93)
Loading…
↗
16
978850602500
Screw, pan head(6b0)
Loading…
↗
17
929030660000
Washer, plain (646)
Loading…
↗
18
978030602000
Screw pan head
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
995100801200
Pin, dowel(n04)
Loading…
↗
21
6G8813370100
Cover, Flywheel
Loading…
↗
22
6G8427520000
Shaft
Loading…
↗
23
9048015M3100
Grommet (6g1)
Loading…
↗
24
9038706M7100
Collar (6g8)
Loading…
↗
25
6G8813230000
Screw 1
Loading…
↗
26
902800500100
Key, woodruff
Loading…
↗
27
901701206600
Nut, hexagon 6481155500
Loading…
↗
28
902011247200
Washer, plate (4n0)
Loading…
↗
