70BETO (1993)
Manual Tilt

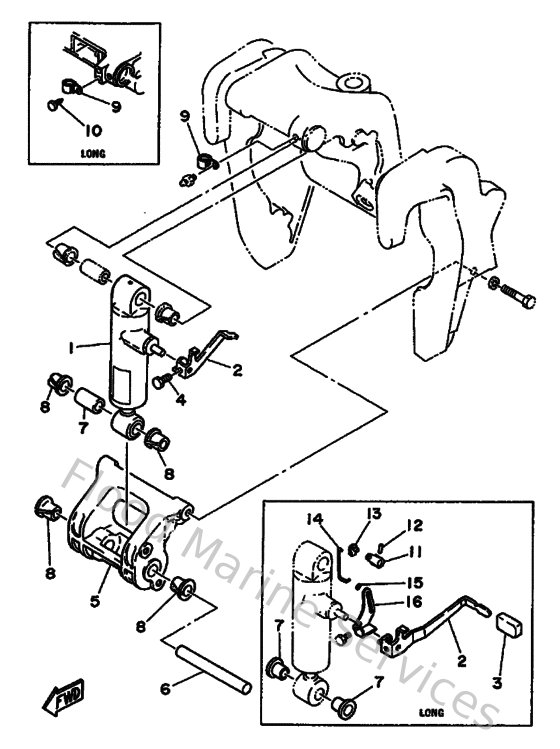

Diagram: Manual Tilt
Parts List
Reference
Description
Price
1
6974317003EJ
Shock Absorber assembly
Loading…
↗
2
688436310000
Lever, tilt 1
Loading…
↗
3
682433180100
Cover
Loading…
↗
4
973950601000
Bolt
Loading…
↗
6
688431240200
Pin, lower shock mount
Loading…
↗
7
9038618M6300
Bush(6e5)
Loading…
↗
8
9038618M3500
Bush (688)
Loading…
↗
9
904650802800
Clamp (1e6)
Loading…
↗
10
9033805M0300
Plug (6h1)
Loading…
↗
11
688431860000
Lever
Loading…
↗
12
916903002000
Pin, spring (6h4)
Loading…
↗
13
6J8412620000
Joint, choke lever
Loading…
↗
14
688436160000
Rod, tilt lock
Loading…
↗
15
9020203M5100
Washer, plate(688)
Loading…
↗
16
688436510000
Lever, reverse lock1
Loading…
↗
