100AETO (2001)
Meter

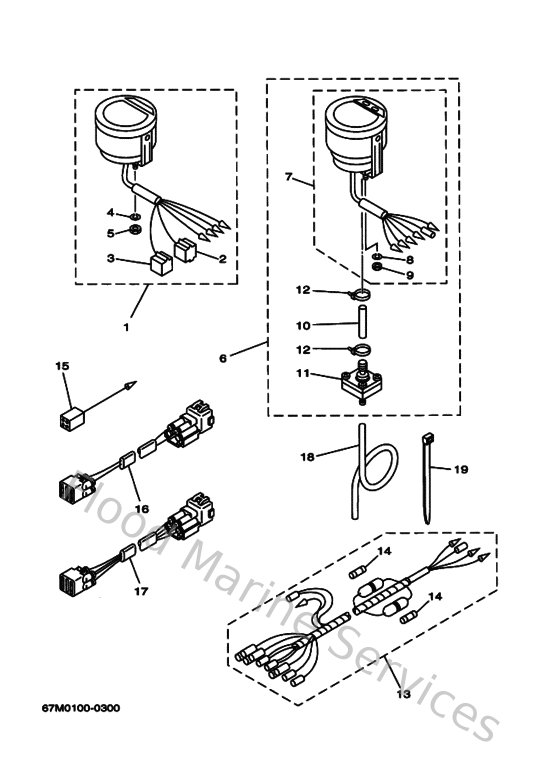

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y583500T200
Digital tachometer assembly
Loading…
↗
2
9E4500443300
Housing, connector (m-4-w)
Loading…
↗
3
9E4500453300
Housing, f-4-w(5pcs)
Loading…
↗
4
929900410000
Ybs67-4 washer, spring
Loading…
↗
5
953800460000
Nut,hex
Loading…
↗
6
6Y583570A000
Speedometer assembly
Loading…
↗
7
6Y583570S500
Speedometer assembly
Loading…
↗
10
91A300303900
Tube, flexible vinyl(8av)
Loading…
↗
11
6Y5837280000
Connector assembly
Loading…
↗
12
9046511M1000
Clamp
Loading…
↗
13
6Y583553M000
Wire, lead (l=2.5m)
Loading…
↗
14
1E6821510000
Fuse (10a)
Loading…
↗
15
6Y5821170000
Wire, lead
Loading…
↗
16
6R3825217000
Wire, lead (for tacho., 7m)
Loading…
↗
17
6R3825537000
Extension, wire lead (for trim
Loading…
↗
18
6Y5835570000
Tube (8m)
Loading…
↗
