Yamaha Outboard Parts - Meter - 150AETOL (2001) | Flood Marine

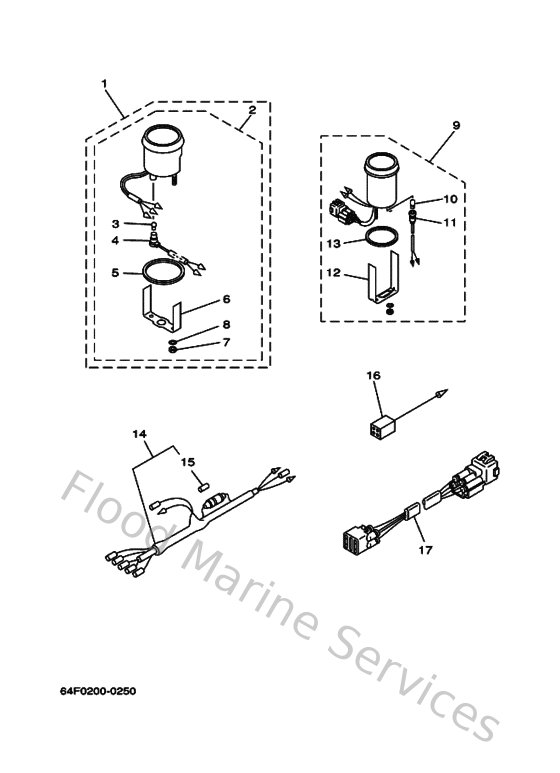

Diagram: Meter

Diagram

Parts List

Reference
Description
Price


1
6Y5W00801200
Tachometer kit
Loading…

↗
2
6Y5835401400
Tachometer assembly
Loading…

↗
3
6Y5835170000
Bulb (12v-1.7w)
Loading…

↗
4
688835360000
Socket, meter
Loading…

↗
5
6Y5835230000
Damper
Loading…

↗
6
6Y5835140000
Plate, fitting
Loading…

↗
7
953800560000
Nut, hexagon (663)
Loading…

↗
8
929900510000
Ybs67-5 washer, spring
Loading…

↗
9
6Y5836701200
Trim meter assembly.
Loading…

↗
10
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…

↗
11
6Y5835360000
Socket, meter
Loading…

↗
12
6Y5835440000
Plate, fitting
Loading…

↗
13
688836640000
Damper
Loading…

↗
14
6Y583553N000
Wire, lead (l=2.5m)
Loading…

↗
15
1E6821510000
Fuse (10a)
Loading…

↗
16
6Y5821170000
Wire, lead
Loading…

↗
17
6R3825537000
Extension, wire lead (for trim
Loading…

↗
