15FMC (1999)
Meter

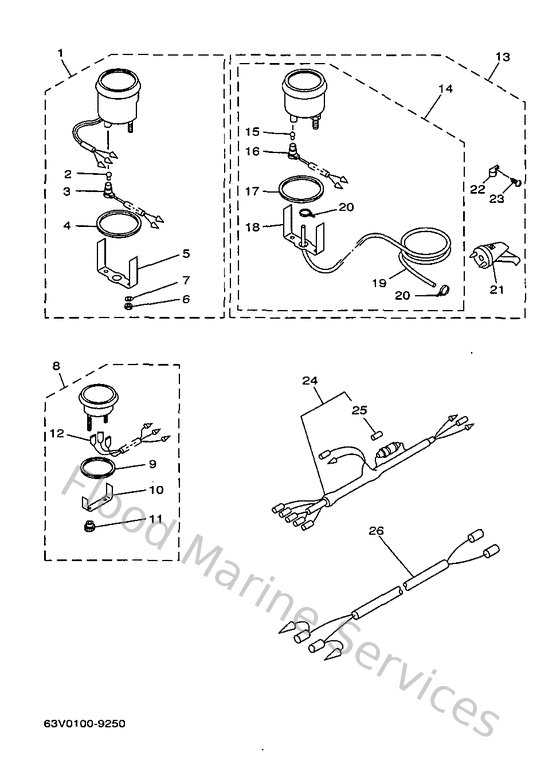

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y5835401400
Tachometer assembly
Loading…
↗
2
6Y5835170000
Bulb (12v-1.7w)
Loading…
↗
3
6Y5835361000
Socket, meter
Loading…
↗
4
6Y5835230000
Damper
Loading…
↗
5
6Y5835140000
Plate, fitting
Loading…
↗
6
953800560000
Nut, hexagon (663)
Loading…
↗
7
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
6Y5835041000
Hour meter assembly (digital)
Loading…
↗
13
6Y5W00814000
Speedometer Kit
Loading…
↗
14
6Y5835103000
Speedometer assembly (km/h,knots,m
Loading…
↗
19
688835570000
Tube (8m)
Loading…
↗
20
9046511M1000
Clamp
Loading…
↗
21
688835560000
Sender (with hose l:6m/d:4mm)
Loading…
↗
22
906013140200
021-58119-01 clip,nylon 14
Loading…
↗
23
977804011600
Screw,panh.tapping
Loading…
↗
24
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
25
1E6821510000
Fuse (10a)
Loading…
↗
26
6Y5835531000
Wire, lead
Loading…
↗
