Yamaha Outboard Parts - Meter - F20AM (1999) | Flood Marine

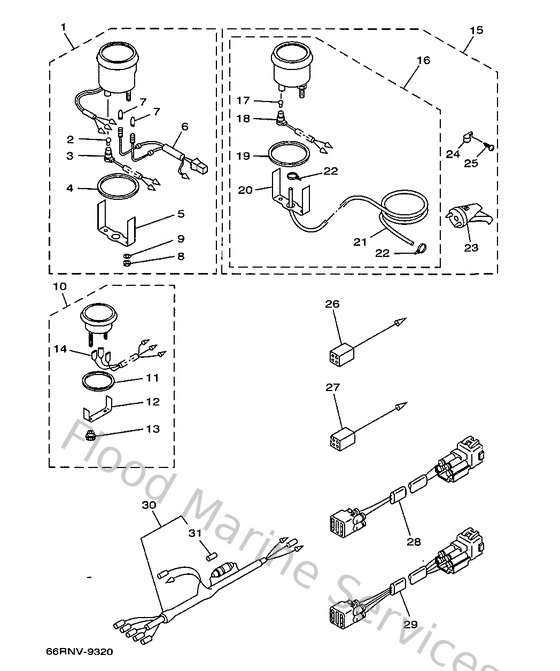

Diagram: Meter

Diagram

Parts List

Reference
Description
Price


1
6Y5835402000
Tachometer assembly
Loading…

↗
2
6Y5835170000
Bulb (12v-1.7w)
Loading…

↗
3
6Y5835361000
Socket, meter
Loading…

↗
4
6Y5835230000
Damper
Loading…

↗
5
6Y5835140000
Plate, fitting
Loading…

↗
6
6Y5835091000
Socket cord assembly
Loading…

↗
7
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…

↗
8
953800560000
Nut, hexagon (663)
Loading…

↗
9
929900510000
Ybs67-5 washer, spring
Loading…

↗
10
6Y5835041000
Hour meter assembly (digital)
Loading…

↗
15
6Y5W00814000
Speedometer Kit
Loading…

↗
16
6Y5835103000
Speedometer assembly (km/h,knots,m
Loading…

↗
18
688835360000
Socket, meter
Loading…

↗
21
688835570000
Tube (8m)
Loading…

↗
22
9046511M1000
Clamp
Loading…

↗
23
688835560000
Sender (with hose l:6m/d:4mm)
Loading…

↗
24
906013140200
021-58119-01 clip,nylon 14
Loading…

↗
25
977804011600
Screw,panh.tapping
Loading…

↗
26
6Y5821170000
Wire, lead
Loading…

↗
27
6Y5825210000
Wire, lead
Loading…

↗
28
6R3825217000
Wire, lead (for tacho., 7m)
Loading…

↗
29
6R3825537000
Extension, wire lead (for trim
Loading…

↗
30
6Y5835530000
Wire, lead (l=2.5m)
Loading…

↗
31
1E6821510000
Fuse (10a)
Loading…

↗
