F45A (2000)
Meter

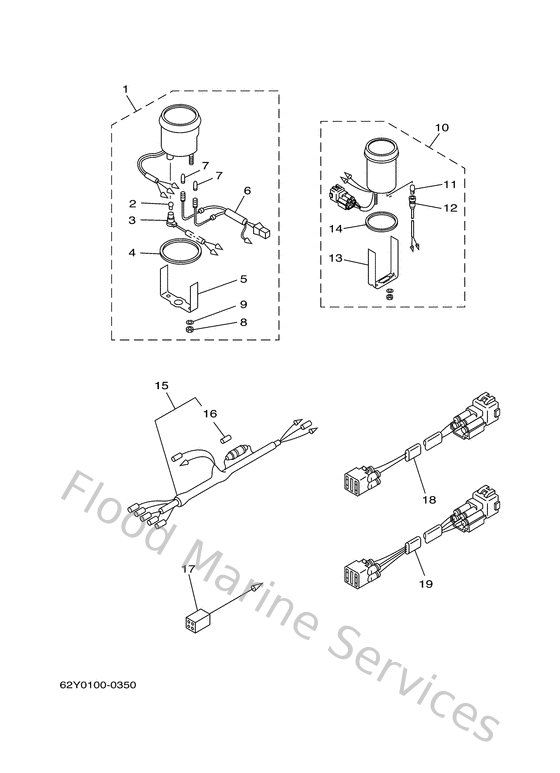

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y5835402000
Tachometer assembly
Loading…
↗
2
6Y5835170000
Bulb (12v-1.7w)
Loading…
↗
3
6Y5835361000
Socket, meter
Loading…
↗
4
6Y5835230000
Damper
Loading…
↗
5
6Y5835140000
Plate, fitting
Loading…
↗
6
6Y5835091000
Socket cord assembly
Loading…
↗
7
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…
↗
8
953800560000
Nut, hexagon (663)
Loading…
↗
9
929900510000
Ybs67-5 washer, spring
Loading…
↗
15
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
16
1E6821510000
Fuse (10a)
Loading…
↗
18
6R3825217000
Wire, lead (for tacho., 7m)
Loading…
↗
