Yamaha Outboard Parts - Meter - L250BETO (2001) | Flood Marine

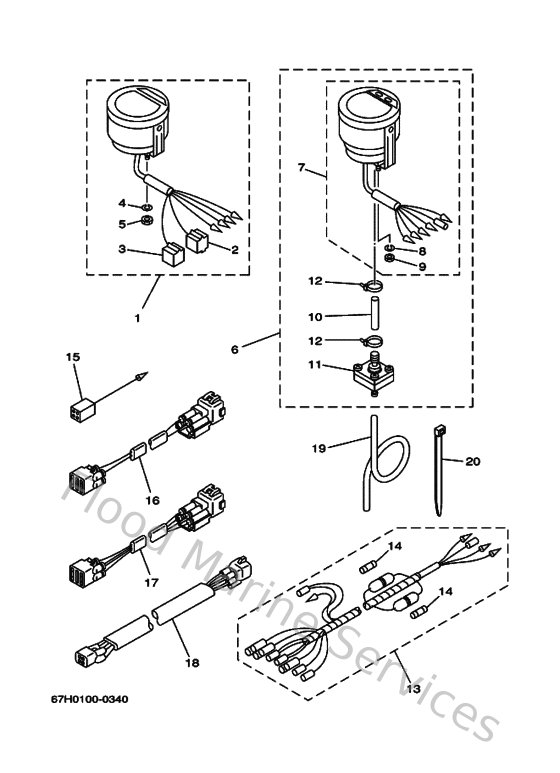

Diagram: Meter

Diagram

Parts List

Reference
Description
Price


1
6Y583500T200
Digital tachometer assembly
Loading…

↗
2
9E4500443300
Housing, connector (m-4-w)
Loading…

↗
3
9E4500453300
Housing, f-4-w(5pcs)
Loading…

↗
4
929900410000
Ybs67-4 washer, spring
Loading…

↗
5
953800460000
Nut,hex
Loading…

↗
13
6Y583553N000
Wire, lead (l=2.5m)
Loading…

↗
14
1E6821510000
Fuse (10a)
Loading…

↗
16
6R3825218000
Wire, lead (for tacho., 8m)
Loading…

↗
17
6R3825538000
Wire, lead
Loading…

↗
18
6R3825533000
Wire, lead
Loading…

↗
