F100DET (2005)
OIL PAN

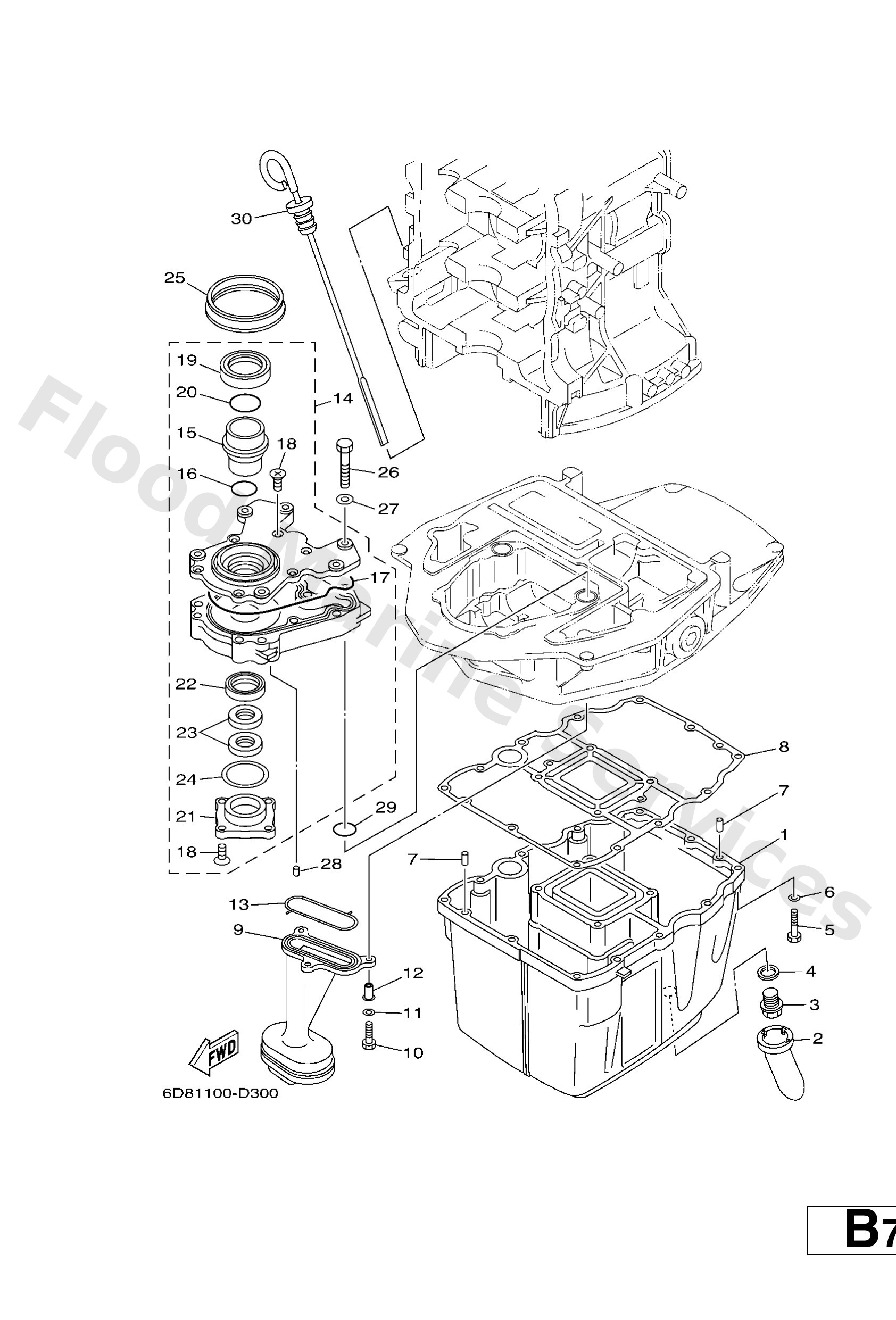

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
67F15311035B
Oil pan
Loading…
↗
2
63P1531600
Damper 1
Loading…
↗
3
9034014M06
Plug, straight screw(62y)
Loading…
↗
4
9043014M09
Gasket
Loading…
↗
5
9707506025
Bolt
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9360612019
Pin, dowel (614)
Loading…
↗
8
68V1531200
Gasket, oil pan
Loading…
↗
9
67F1341100
Strainer, oil
Loading…
↗
10
9702706025
Bolt, hexagon
Loading…
↗
11
9290706600
Washer(6ta)
Loading…
↗
12
9038706M64
Collar
Loading…
↗
13
67F1341500
Seal, oil strainer
Loading…
↗
14
67F1330010
Oil pump assembly
Loading…
↗
15
67F1331402
Shaft, pump
Loading…
↗
16
67F1347301
O-ring
Loading…
↗
17
67F1332900
Gasket, pump cover
Loading…
↗
18
67F1349500
Screw
Loading…
↗
19
67F1311901
Oil seal
Loading…
↗
20
67F1376900
O-ring
Loading…
↗
21
67F1391400
Housing, pump
Loading…
↗
22
67F1363103
Oil seal
Loading…
↗
23
67F1314900
Oil seal
Loading…
↗
24
67F1333900
Gasket, pump cover
Loading…
↗
25
67F1333800
Seal
Loading…
↗
26
9709506045
Bolt, hexagon
Loading…
↗
28
9360412M07
Pin, dowel (688)
Loading…
↗
29
9321019MJ1
O-ring
Loading…
↗
30
6D81536200
Plug, oil level
