F15AEP (2004)
OIL PAN

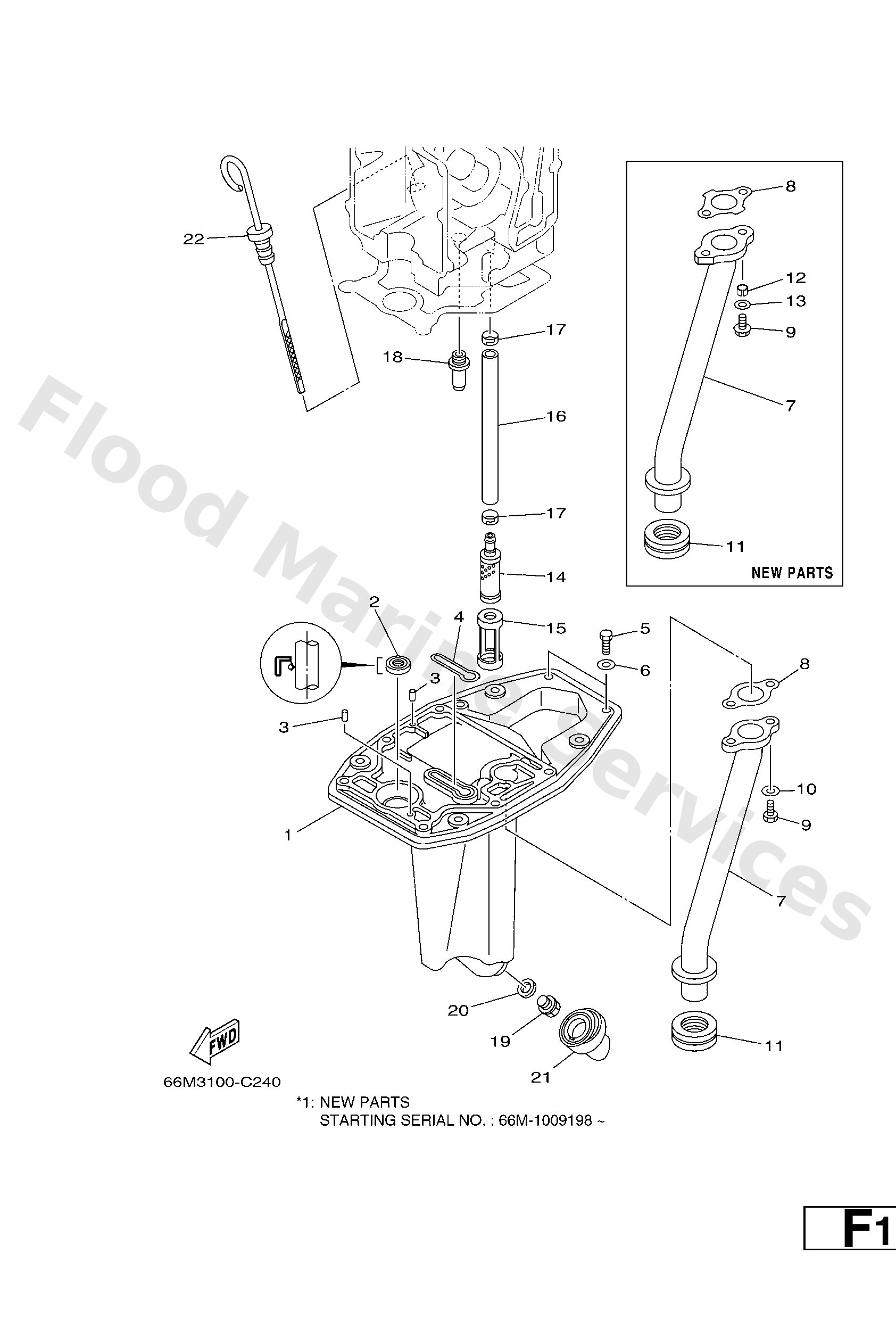

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
66M41137005B
Guide, exhaust
Loading…
↗
2
9310112M63
Oil seal
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
66M1135500
Seal, cylinder 1
Loading…
↗
5
9709506020
Bolt(7u8)
Loading…
↗
10
9299506600
OLD PARTS
Washer, plain (646)
Loading…
↗
7
66M411310194
Manifold, Ext. 1
Loading…
↗
7
6D4411310094
NEW PARTS *1
Manifold, Ext. 1
Loading…
↗
8
66M4113300
Gasket, exhaust manifold 1
Loading…
↗
8
66M4113301
NEW PARTS *1
Gasket, exhaust manifold 1
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
9
9011906090
NEW PARTS *1
Bolt, With Washer
Loading…
↗
11
66M4113800
Seal, ext. 1
Loading…
↗
11
6D44113800
NEW PARTS *1
Seal, ext. 1
Loading…
↗
12
9038705008
NEW PARTS *1
-
Loading…
↗
13
9020106015
NEW PARTS *1
Washer, plate
Loading…
↗
14
66M1342100
Strainer 2
Loading…
↗
15
66M1341700
Cover, Strainer
Loading…
↗
16
66M1341600
Pipe, Oil 1
Loading…
↗
17
66M2435100
Band 1
Loading…
↗
18
6G81157500
Relief valve ass'y
Loading…
↗
19
9034014M06
Plug, straight screw(62y)
Loading…
↗
20
9043014M09
Gasket
Loading…
↗
21
66M1531600
Damper, Engine Mount 1
Loading…
↗
22
66M1536200
Plug, Oil Level
Loading…
↗
