F15CE (2013)
OIL PAN

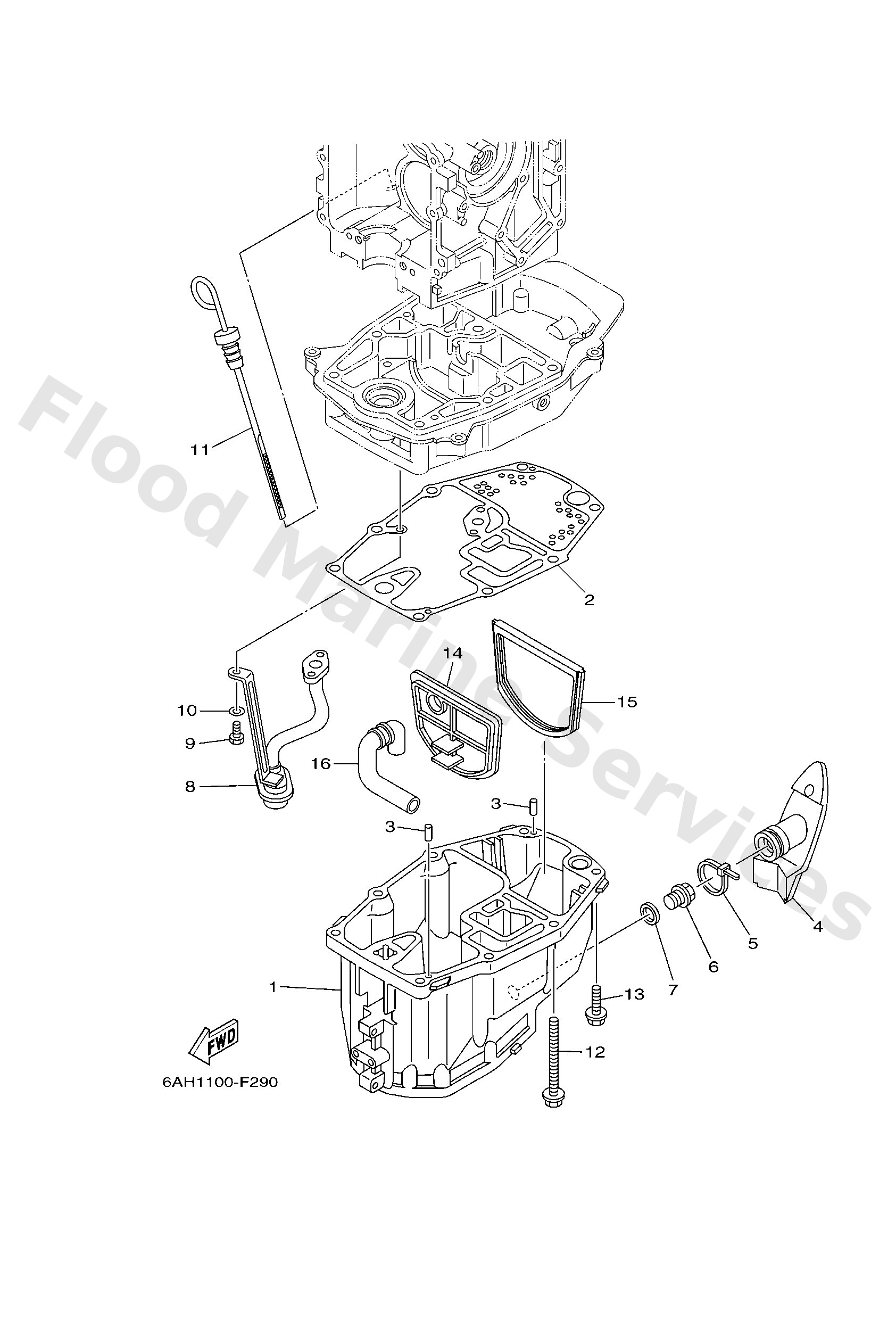

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6AH1531100CA
Oil pan
Loading…
↗
2
6AH1531200
Gasket, oil pan
Loading…
↗
3
9360412M07
Pin, dowel (688)
Loading…
↗
4
6AH1531600
Damper, engine mount 1
Loading…
↗
5
9046511M59
Clamp(63m)
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
6AH1341100
Strainer, oil
Loading…
↗
9
9701306016
Bolt, hexagon deep recess
Loading…
↗
10
9290306600
Washer, plain (646)
Loading…
↗
11
6AH1536200
Plug, oil level
Loading…
↗
12
9011908103
Bolt, with washer
Loading…
↗
13
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
14
6AH4512600
Plate, seal damper
Loading…
↗
15
6AH4511500
Gasket, upper casing
Loading…
↗
16
6AH4513500
Pipe
Loading…
↗
