F175GET (2025)
OIL PAN

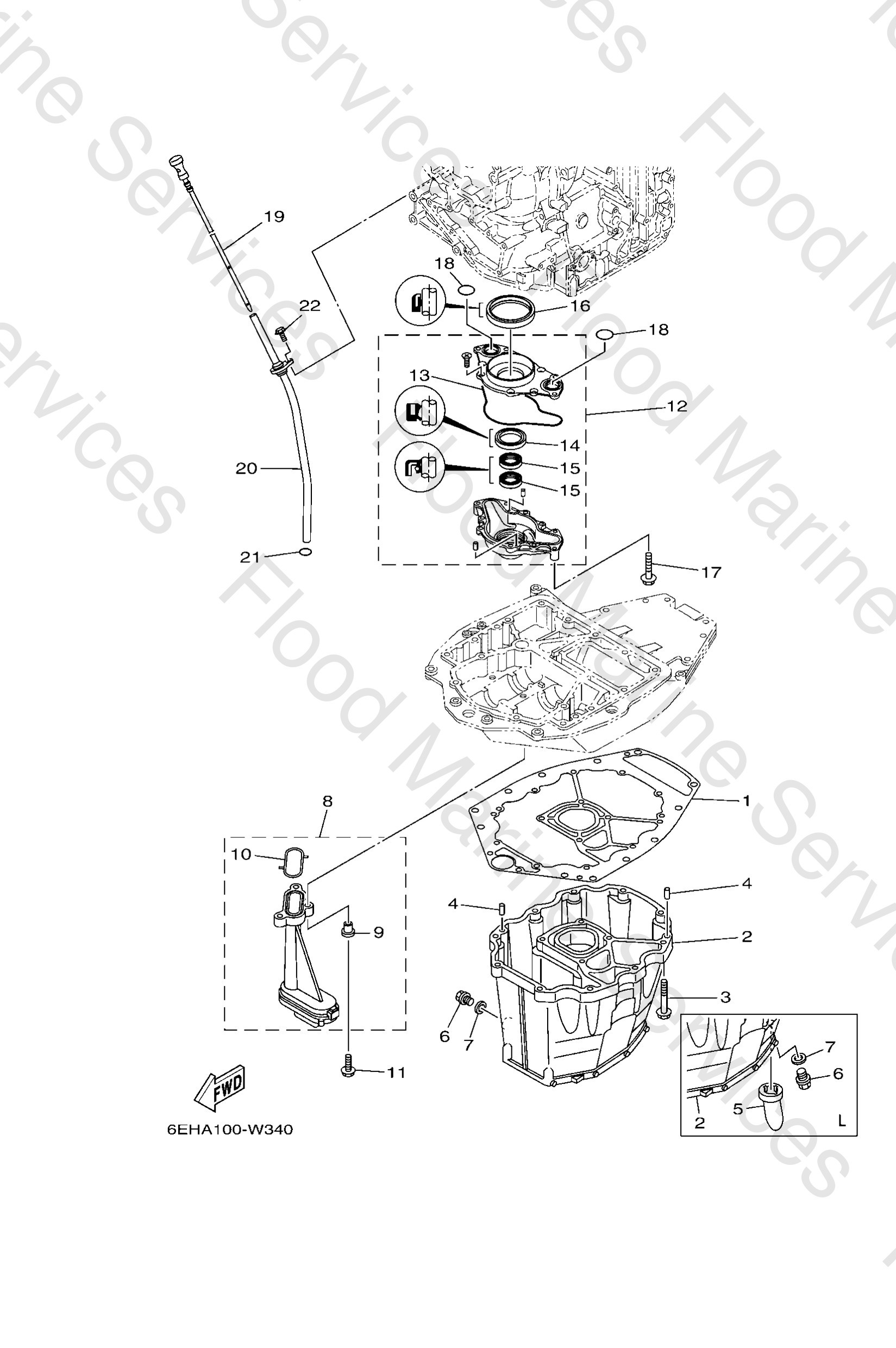

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
63P1531202
Gasket, oil pan
Loading…
↗
2
6DA1531102CA
X(25.2")
Oil pan
Loading…
↗
2
63P1531104CA
L(20.3")
Oil pan
Loading…
↗
3
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
63P1531601
L(20.3")
Damper 1
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
63P1341100
Strainer, oil
Loading…
↗
9
9038706263
Collar
Loading…
↗
10
63P1341500
Seal, oil strainer
Loading…
↗
11
9581206025
Bolt, flange
Loading…
↗
12
6DA1330000
Oil pump assembly
Loading…
↗
13
6DA1332900
Gasket, pump cover
Loading…
↗
14
6AW1311900
Oil seal
Loading…
↗
15
69J1363100
Oil seal
Loading…
↗
16
6CB1135500
Seal, cylinder 1
Loading…
↗
17
97E7506540
Bolt, hexagon w/w deep recess
Loading…
↗
18
9321025552
O-ring (22f)
Loading…
↗
19
6DA1536200
Plug, oil level
Loading…
↗
20
6DA1537700
Guide, inlet
Loading…
↗
21
9321019MJ3
O-ring
Loading…
↗
22
95D9506016
Bolt, flange deep recess
Loading…
↗
