F20GEP (2022)
OIL PAN

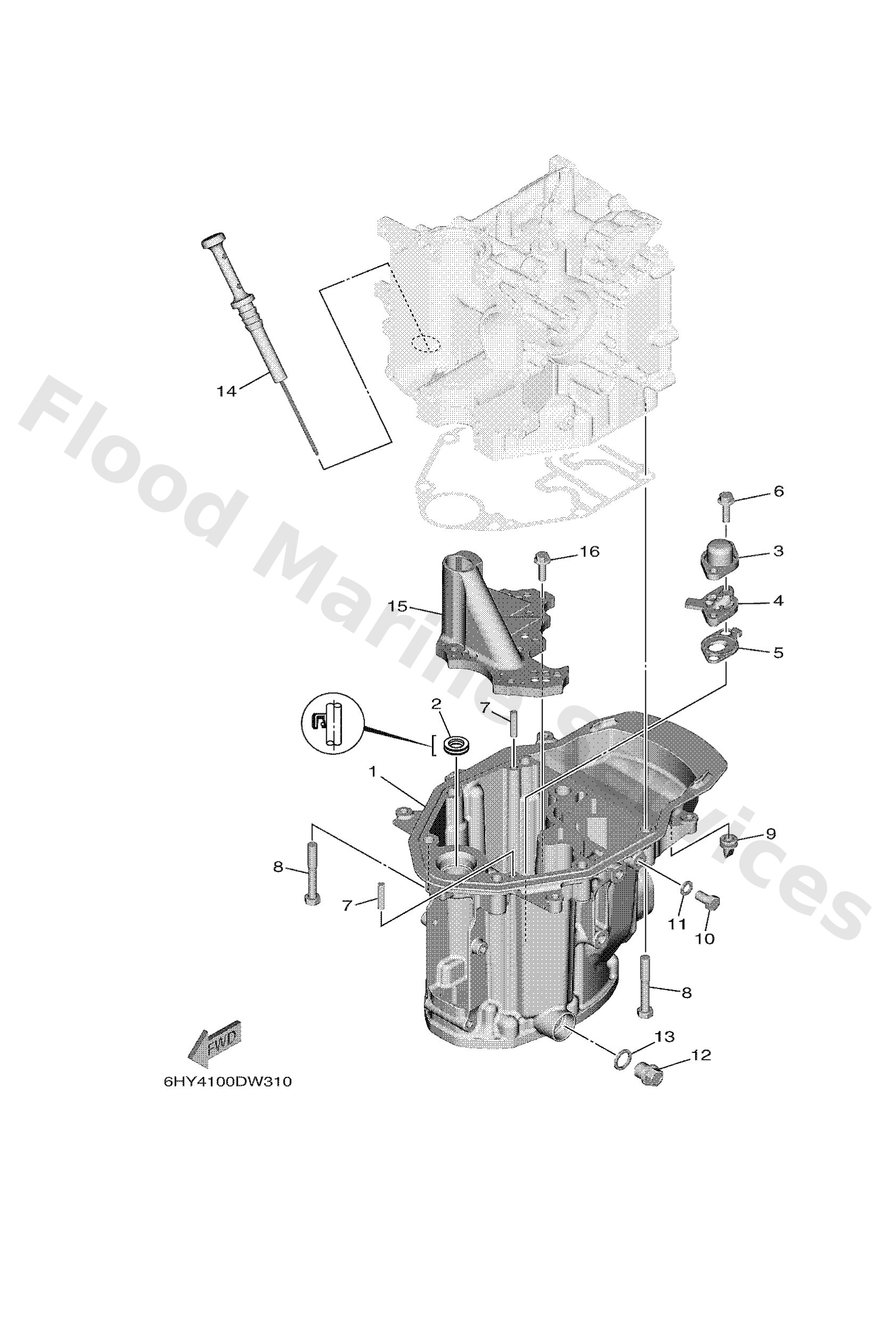

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6FM15311008D
Oil pan
Loading…
↗
2
9310113001
Oil seal
Loading…
↗
3
6FM1341100
Strainer, oil
Loading…
↗
4
6FM1342100
Strainer 2
Loading…
↗
5
6FM1341500
Seal, oil strainer
Loading…
↗
6
9582206025
95822-06025
Loading…
↗
7
9360625M00
Pin, dowel b (676)
Loading…
↗
8
97E7508555
Bolt, hexagon w/w deep recess
Loading…
↗
9
65W4271700
Rubber, seal 2
Loading…
↗
10
97D9508014
Bolt, hexagon deep recess
Loading…
↗
11
9043008143
Gasket (256-11198-00)
Loading…
↗
12
9034014M06
Plug, straight screw(62y)
Loading…
↗
13
9043014M09
Gasket
Loading…
↗
14
6FM1536200
Plug, oil level
Loading…
↗
15
6FM1331710
Plate, baffle
Loading…
↗
16
9581706025
Bolt, flange
Loading…
↗
