F25DET (2018)
OIL PAN

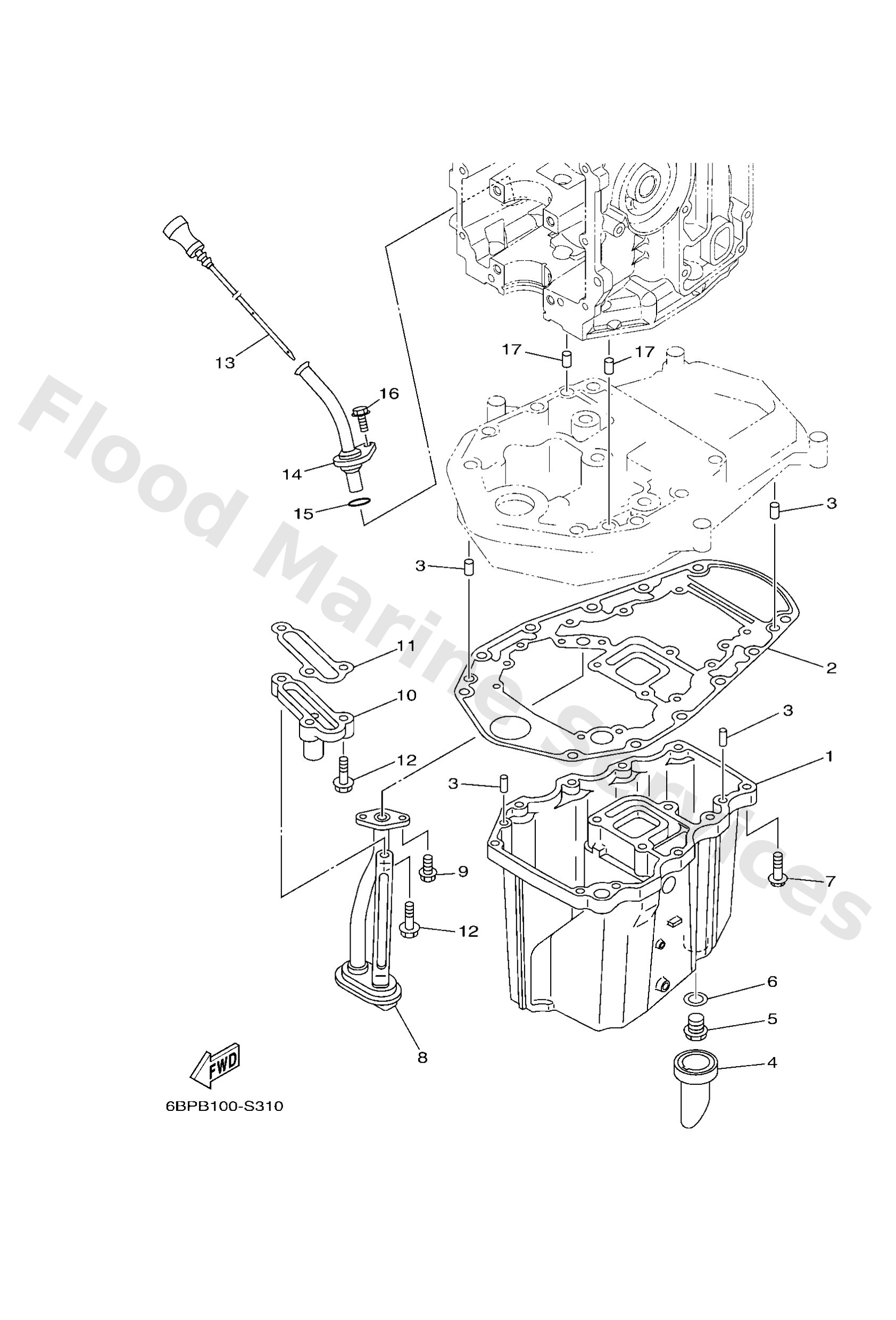

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
65W1531103CA
Oil pan
Loading…
↗
2
69W1531200
Gasket, oil pan
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
65W1531600
Damper 1
Loading…
↗
5
9034014M06
Plug, straight screw(62y)
Loading…
↗
6
9043014M09
Gasket
Loading…
↗
7
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
8
65W1341100
Strainer, oil
Loading…
↗
9
9751306516
Bolt, hexagon deep recess
Loading…
↗
10
6BG115760094
Body, relief
Loading…
↗
11
62Y1347500
Gasket
Loading…
↗
12
9751306525
Bolt, with washer(61b)
Loading…
↗
13
6BL1536200
Plug, oil level
Loading…
↗
14
6BL1537700
Guide, inlet
Loading…
↗
15
9321019MJ3
O-ring
Loading…
↗
16
9589506016
Bolt, flange deep recess
Loading…
↗
17
9360812M05
Pin, dowel b (6e5)
Loading…
↗
