F40BET (2007)
OIL PAN

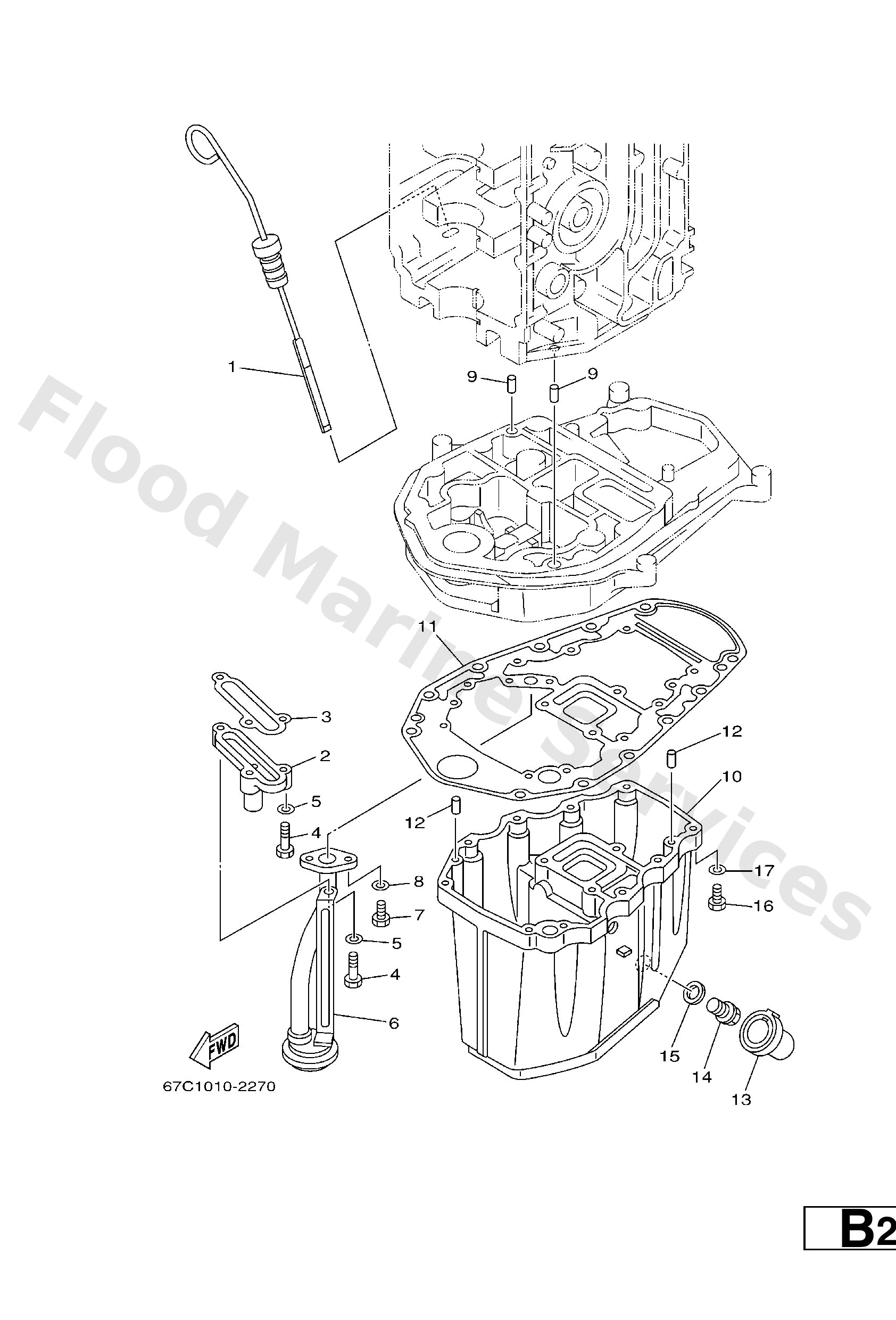

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
67C1536200
Plug, oil level
Loading…
↗
2
62Y1157500
Relief valve ass'y
Loading…
↗
3
62Y1347500
Gasket
Loading…
↗
4
9701306025
Bolt(62y)
Loading…
↗
5
9290306600
Washer, plain (646)
Loading…
↗
6
62Y1341100
Strainer, oil
Loading…
↗
7
9701306016
Bolt, hexagon deep recess
Loading…
↗
9
9360812M05
Pin, dowel b (6e5)
Loading…
↗
10
62Y15311025B
Oil pan
Loading…
↗
11
69W1531200
Gasket, oil pan
Loading…
↗
12
9360612019
Pin, dowel (614)
Loading…
↗
13
67C1531610
S(16.1")
Damper, engine mount 1
Loading…
↗
13
67C1531600
L(21.0"),X(25.5")
Damper 1
Loading…
↗
14
9034014M06
Plug, straight screw(62y)
Loading…
↗
15
9043014M09
Gasket
Loading…
↗
16
9707506025
Bolt
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
