F40FED (2017)
OIL PAN

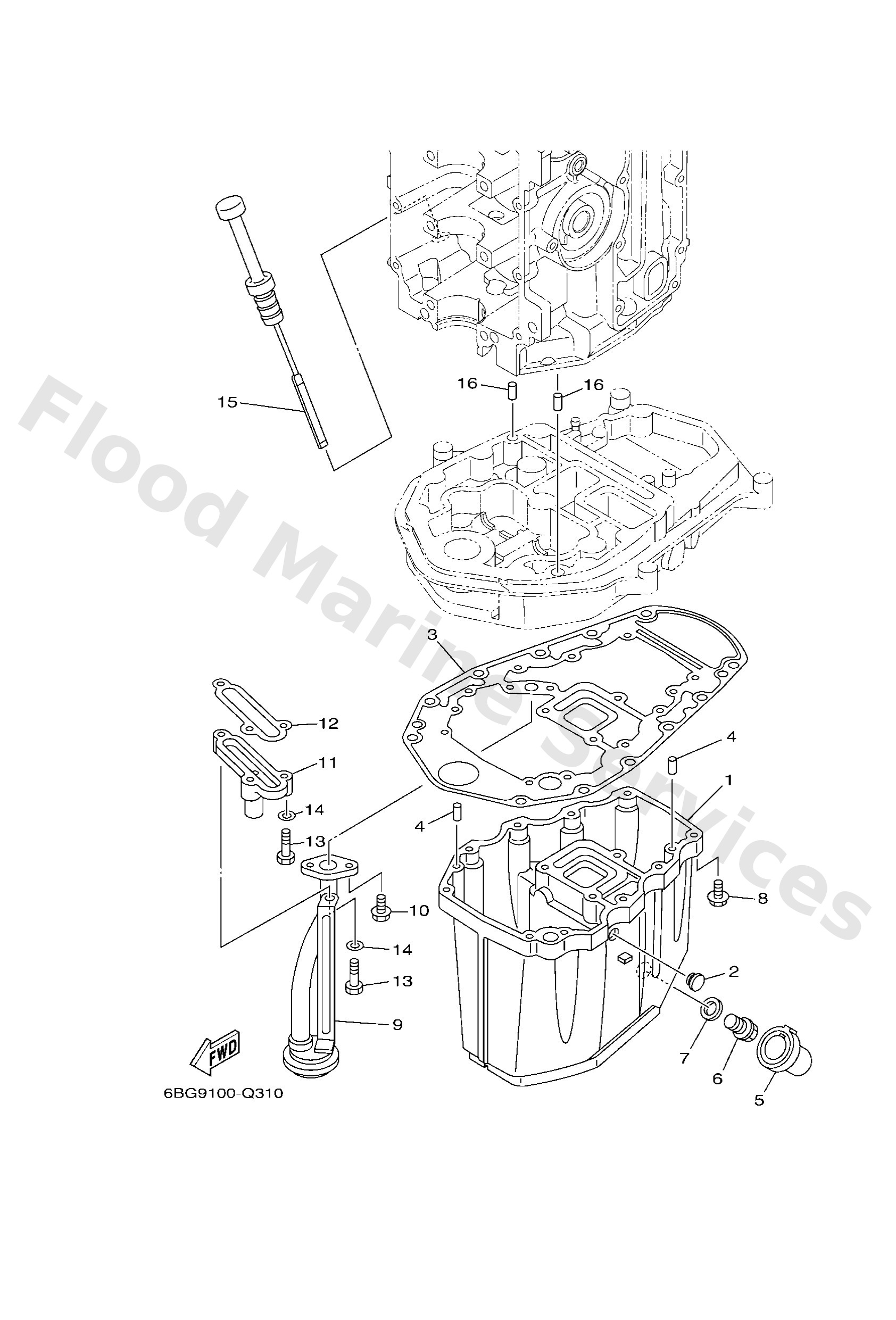

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6BG1531100CA
Oil pan
Loading…
↗
2
9048012M25
Grommet (6e9)
Loading…
↗
3
69W1531200
Gasket, oil pan
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
67C1531600
L(21.1")
Damper 1
Loading…
↗
5
67C1531610
S(16.3")
Damper, engine mount 1
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
9
62Y1341100
Strainer, oil
Loading…
↗
10
9751306516
Bolt, hexagon deep recess
Loading…
↗
11
6BG115760094
Body, relief
Loading…
↗
12
62Y1347500
Gasket
Loading…
↗
13
9701306025
Bolt(62y)
Loading…
↗
14
9290306600
Washer, plain (646)
Loading…
↗
15
6BG1536200
Plug, oil level
Loading…
↗
16
9360812M05
Pin, dowel b (6e5)
Loading…
↗
