F40FED (2019)
OIL PAN

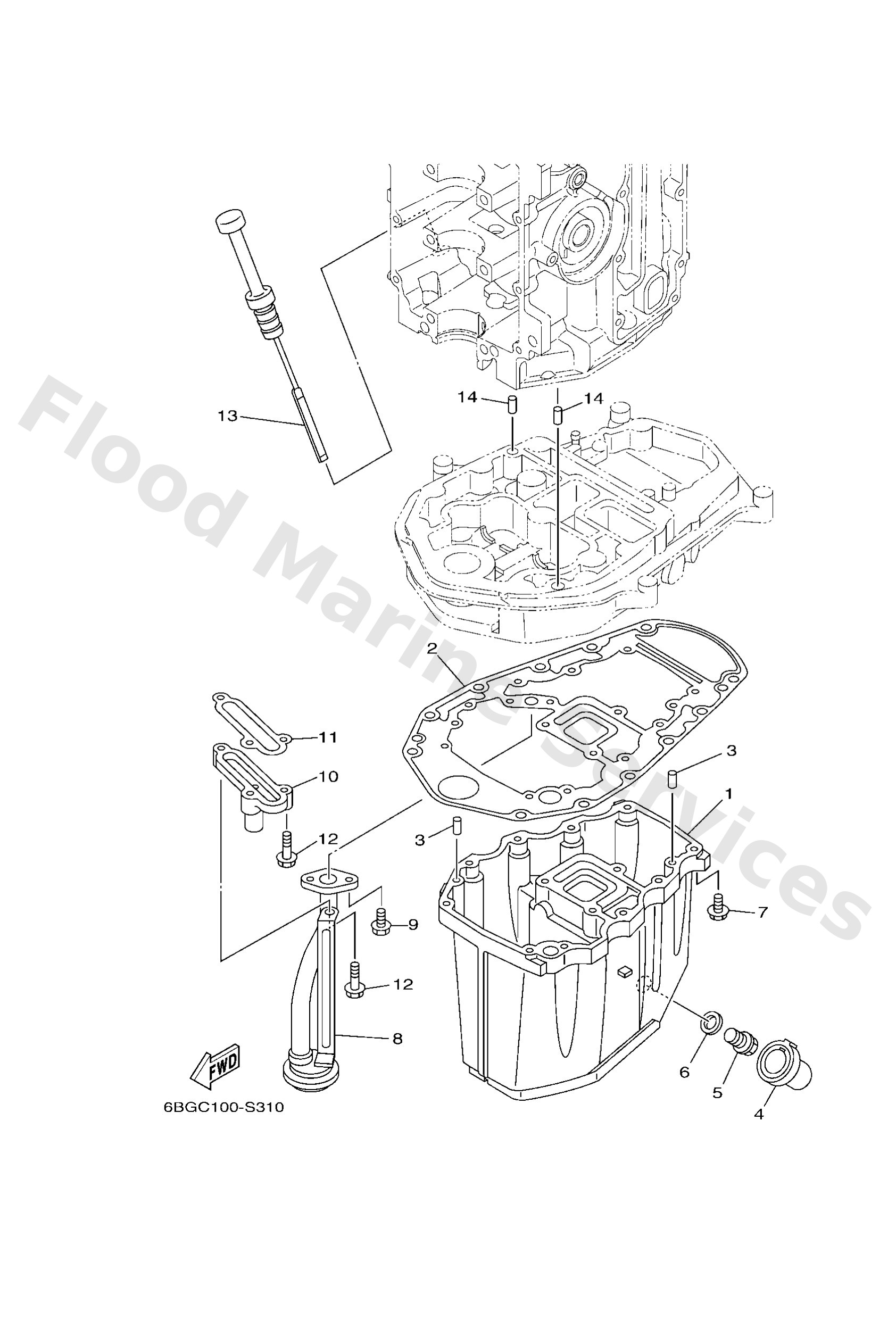

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6BG1531110CA
Oil pan
Loading…
↗
2
69W1531201
Gasket, oil pan
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
67C1531610
S(16.3")
Damper, engine mount 1
Loading…
↗
4
67C1531600
L(21.1")
Damper 1
Loading…
↗
5
9034014M06
Plug, straight screw(62y)
Loading…
↗
6
9043014M09
Gasket
Loading…
↗
7
97E7506525
Bolt, hexagon w/w deep recess
Loading…
↗
8
62Y1341100
Strainer, oil
Loading…
↗
9
9751306516
Bolt, hexagon deep recess
Loading…
↗
10
6BG115760094
Body, relief
Loading…
↗
11
62Y1347500
Gasket
Loading…
↗
12
9751306525
Bolt, with washer(61b)
Loading…
↗
13
6BG1536200
Plug, oil level
Loading…
↗
14
9360812M05
Pin, dowel b (6e5)
Loading…
↗
