F50AET (2006)
OIL PAN

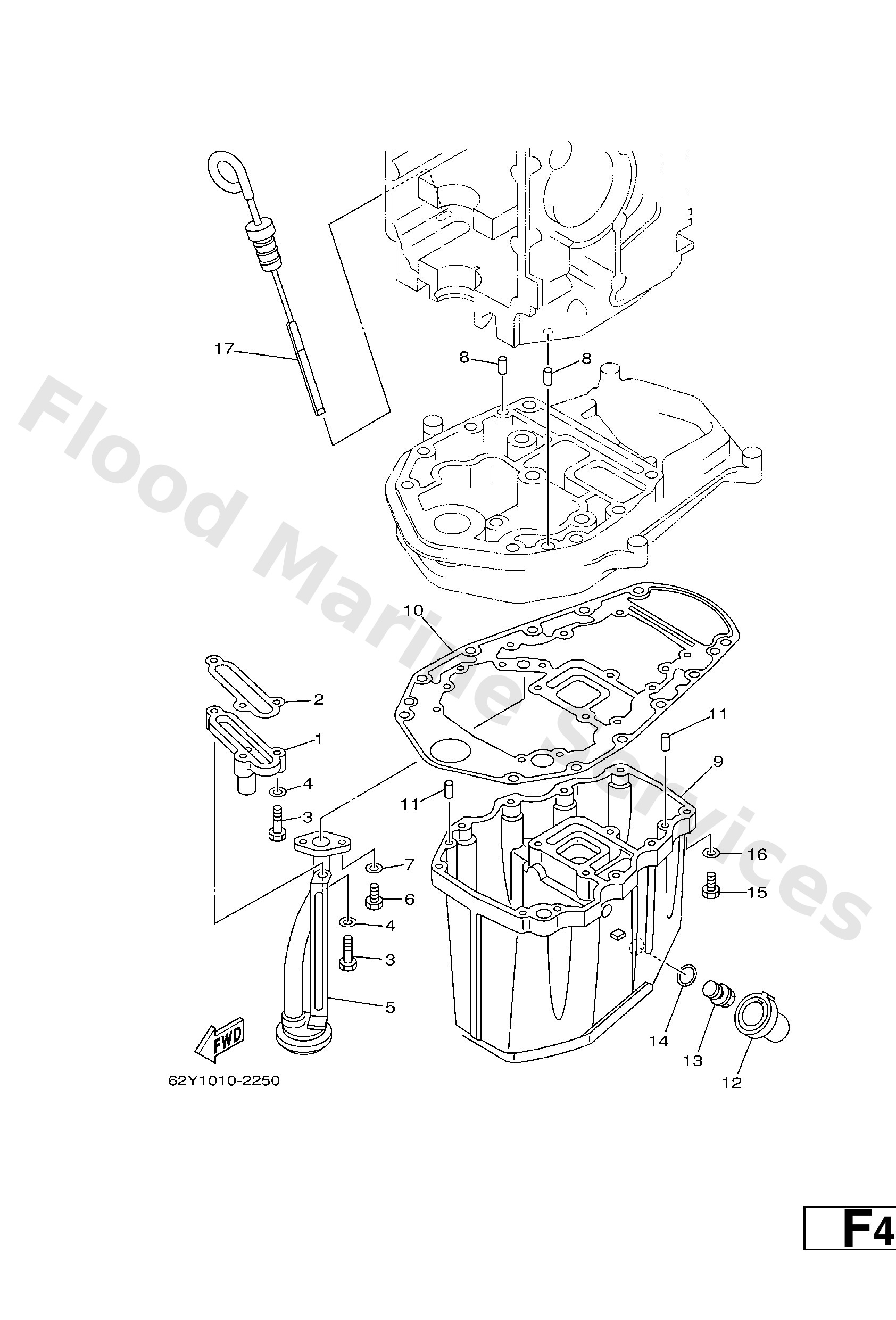

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
62Y1157500
Relief valve ass'y
Loading…
↗
2
62Y1347500
Gasket
Loading…
↗
3
9701306025
Bolt(62y)
Loading…
↗
4
9290306600
Washer, plain (646)
Loading…
↗
5
62Y1341100
Strainer, oil
Loading…
↗
6
9701306016
Bolt, hexagon deep recess
Loading…
↗
8
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
64J15311015B
FT50C
Oil pan
Loading…
↗
9
62Y15311025B
F50A
Oil pan
Loading…
↗
10
69W1531200
Go to P/N ) PE0-OM-160019
Gasket, oil pan
Loading…
↗
11
9360612019
Pin, dowel (614)
Loading…
↗
12
62Y1531600
Damper 1
Loading…
↗
13
9034014M06
Plug, straight screw(62y)
Loading…
↗
14
9043014M09
Gasket
Loading…
↗
15
9707506025
Bolt
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
62Y1536200
Plug, oil level
Loading…
↗
