F50HET (2019)
OIL PAN

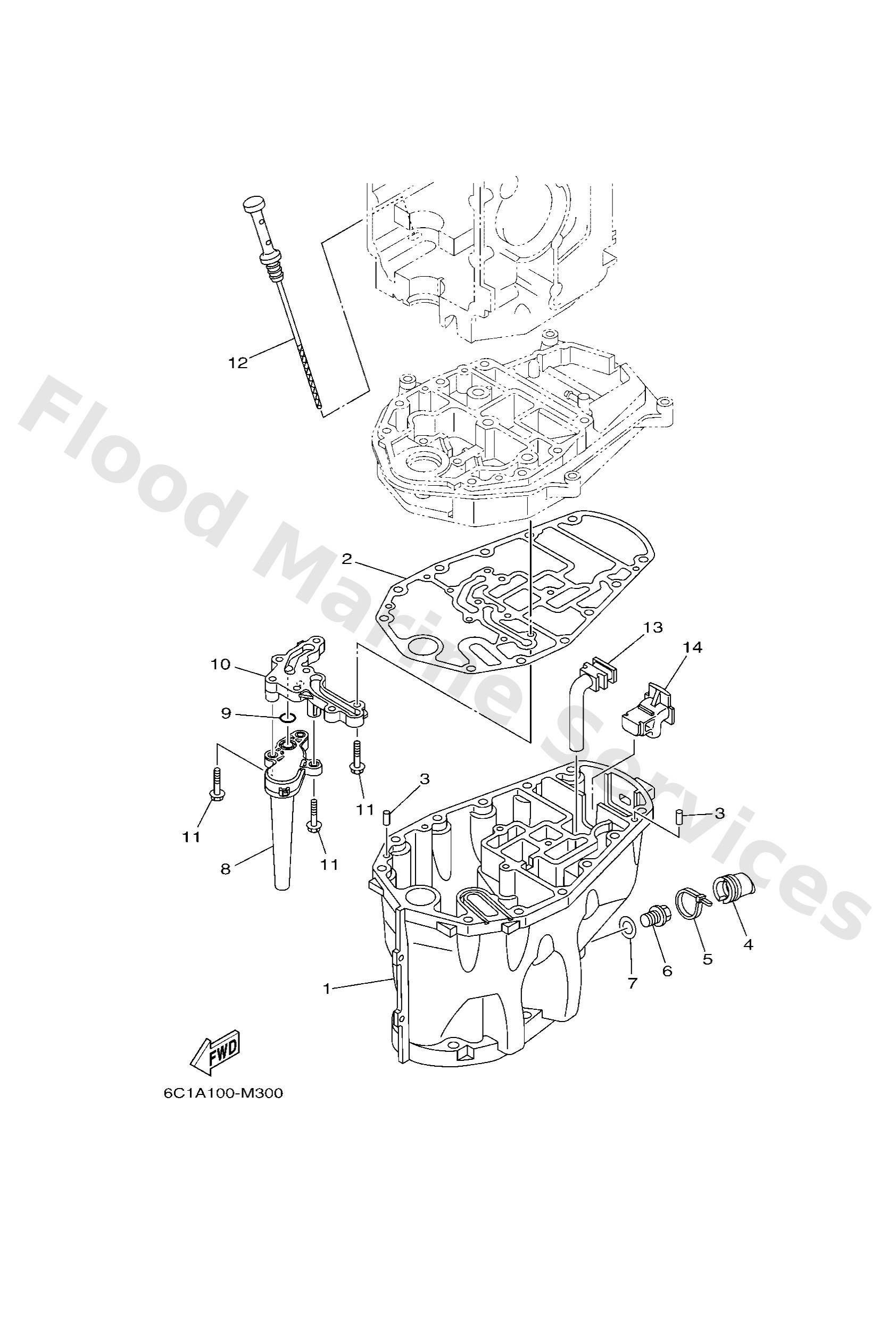

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6C51531102
Oil pan
Loading…
↗
2
6C51531201
Gasket, oil pan
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
6CJ1531600
Damper 1
Loading…
↗
5
9046511M59
Clamp(63m)
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
6CJ1341110
Strainer, oil
Loading…
↗
9
9321012790
O-ring(3ld)
Loading…
↗
10
6CJ1533310
Cover
Loading…
↗
11
9581206025
Bolt, flange
Loading…
↗
12
6C51536200
Plug, oil level
Loading…
↗
13
6C54513510
Pipe
Loading…
↗
14
6C54513610
Pipe
Loading…
↗
