F60CET (2010)
OIL PAN

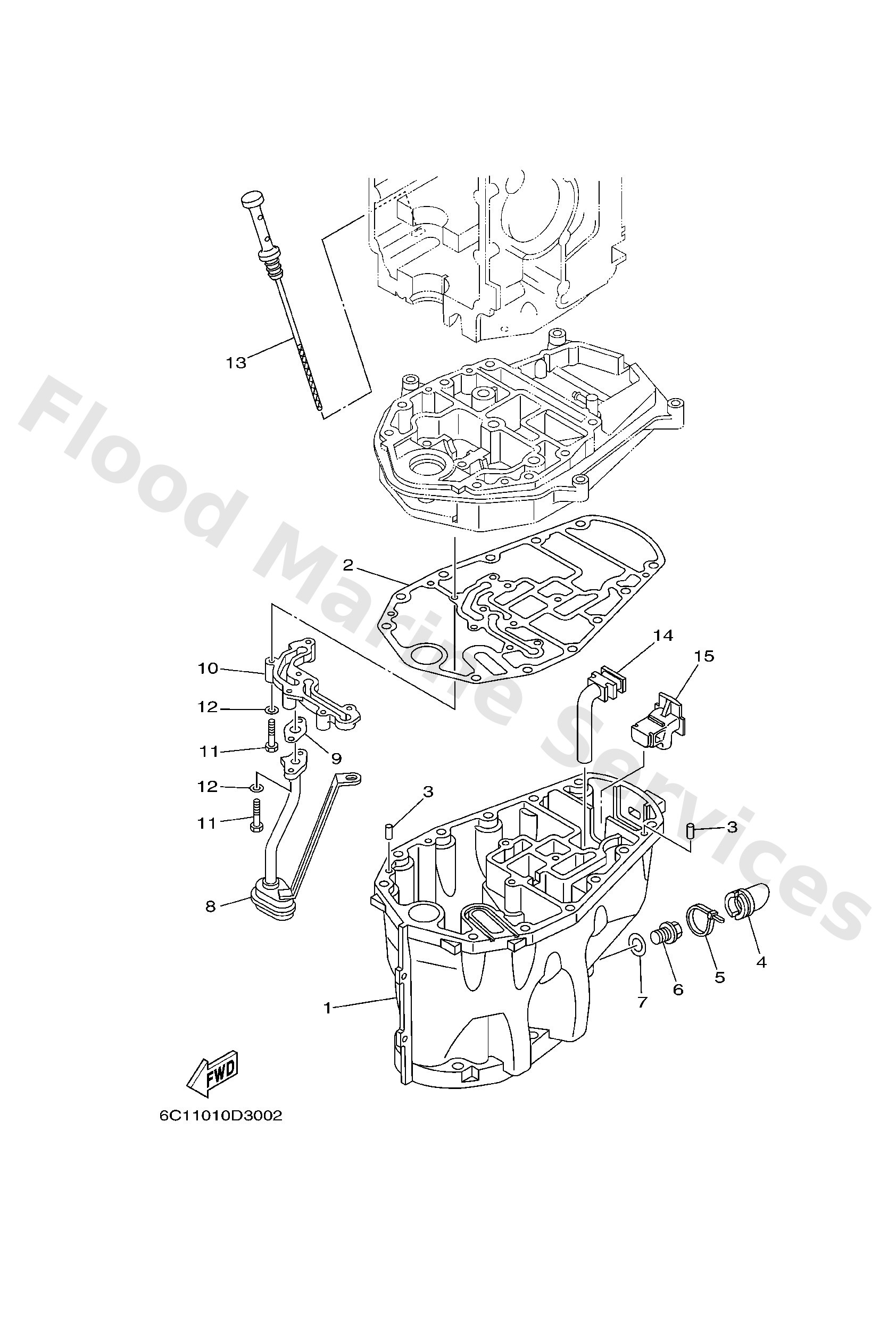

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6C51531101CA
Oil pan
Loading…
↗
2
6C51531200
Gasket, oil pan
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
6C51531600
Damper 1
Loading…
↗
5
9046511M59
Clamp(63m)
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
6CJ1341100
Go to P/N ) PE0-OM-100049
Strainer, oil
Loading…
↗
9
6C51341400
Gasket, strainer cover
Loading…
↗
10
6CJ1533300
Go to P/N ) PE0-OM-100049
Cover
Loading…
↗
11
9701306030
Bolt
Loading…
↗
12
9290306600
Washer, plain (646)
Loading…
↗
13
6C51536200
Plug, oil level
Loading…
↗
14
6C54513501
Pipe
Loading…
↗
15
6C54513601
Pipe
Loading…
↗
