F8CMH (2012)
OIL PAN

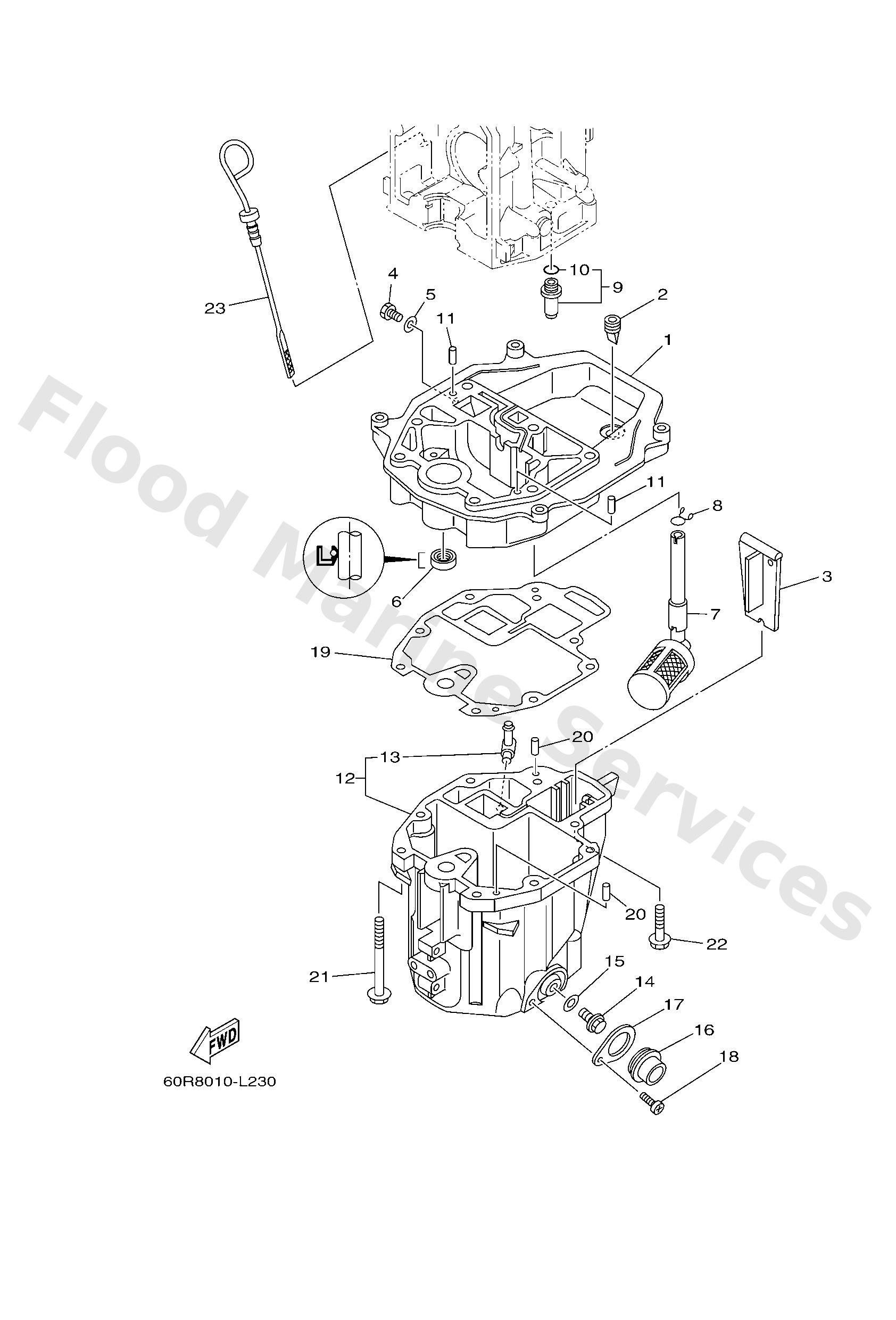

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
60RG11370094
Guide, exhaust
Loading…
↗
2
60SG271700
Rubber, seal 2
Loading…
↗
3
60RG518100
Plate
Loading…
↗
4
9709508014
Bolt, hexagon deep recess
Loading…
↗
5
9043008800
Gasket (256-11198-00)
Loading…
↗
6
9310112M70
Oil seal
Loading…
↗
7
68T1342101
Strainer 2
Loading…
↗
8
9046711M08
Clip(72x)
Loading…
↗
9
6G81157500
Relief valve ass'y
Loading…
↗
10
9321012M62
O-ring (6g8)
Loading…
↗
11
9360619M23
Pin, dowel
Loading…
↗
12
60RE5311005B
Oil pan
Loading…
↗
13
6H11137200
Nipple, hose
Loading…
↗
14
9034010M10
Plug, straight screw
Loading…
↗
15
9043010M11
Gasket
Loading…
↗
16
60RE531600
Damper, engine mount 1
Loading…
↗
17
68T1531700
Spacer, engine mount
Loading…
↗
18
9788505008
Screw, pan head
Loading…
↗
19
68T1347500
Gasket
Loading…
↗
20
9360412M07
Pin, dowel (688)
Loading…
↗
21
9011908005
Bolt, with washer
Loading…
↗
22
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
23
68T1536200
Plug, oil level
Loading…
↗
