FL115BET (2019)
OIL PAN

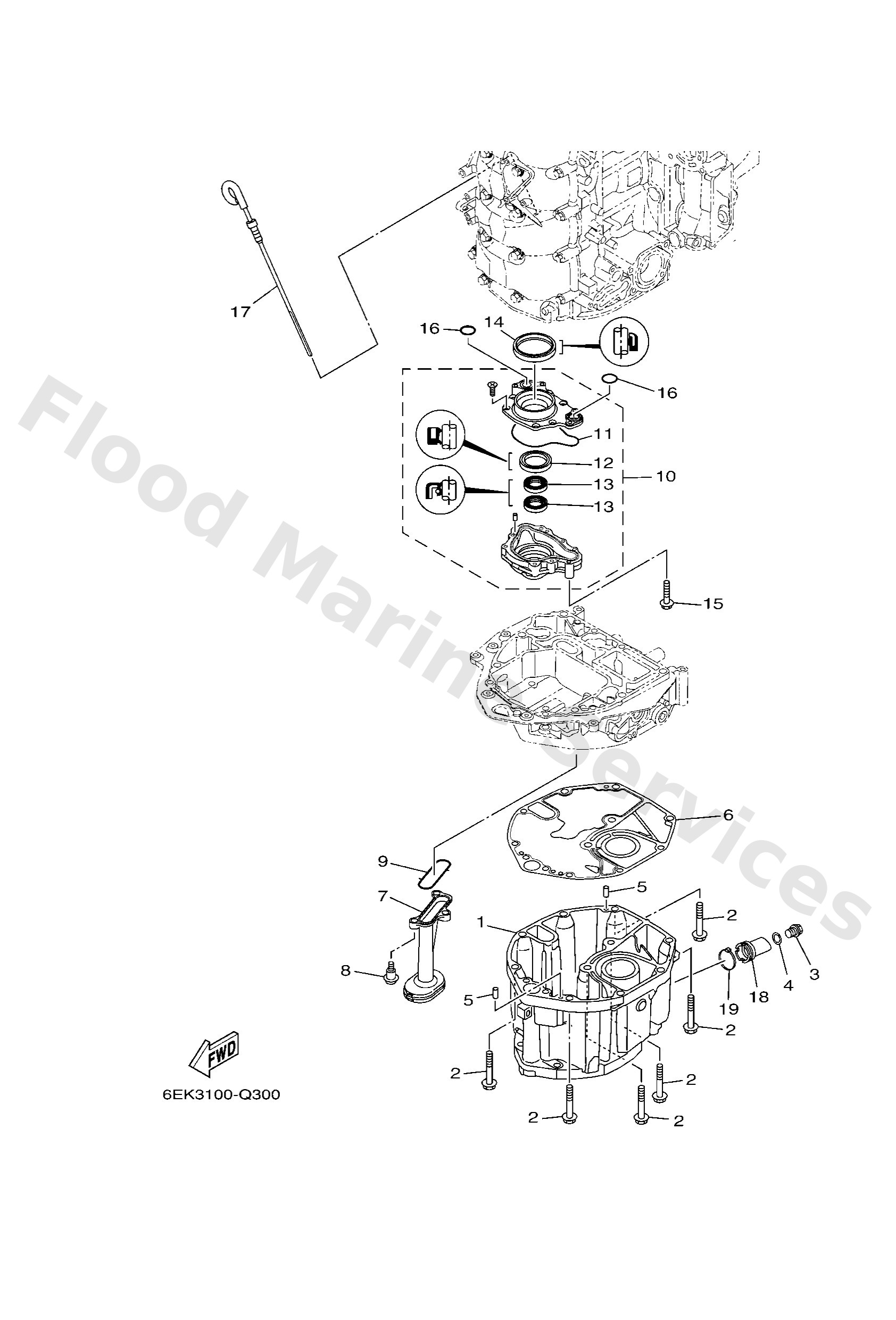

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6EK1531101
Oil pan
Loading…
↗
2
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
3
9034014M06
Plug, straight screw(62y)
Loading…
↗
4
9043014M09
Gasket
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
6EK1531200
Gasket, oil pan
Loading…
↗
7
67F1341100
Strainer, oil
Loading…
↗
8
9010906292
Bolt
Loading…
↗
9
67F1341500
Seal, oil strainer
Loading…
↗
10
6EK1330000
Oil pump assembly
Loading…
↗
11
6EK1332900
Gasket, pump cover
Loading…
↗
12
6AW1311900
Oil seal
Loading…
↗
13
69J1363100
Oil seal
Loading…
↗
14
69J1135500
Seal, cylinder 1
Loading…
↗
15
9010506151
Bolt, flange
Loading…
↗
16
9321019MJ1
O-ring
Loading…
↗
17
6EK1536210
Plug, oil level
Loading…
↗
18
6EK1531600
Damper 1
Loading…
↗
19
9046511M59
Clamp(63m)
Loading…
↗
