FL225AET (2003)
OIL PAN

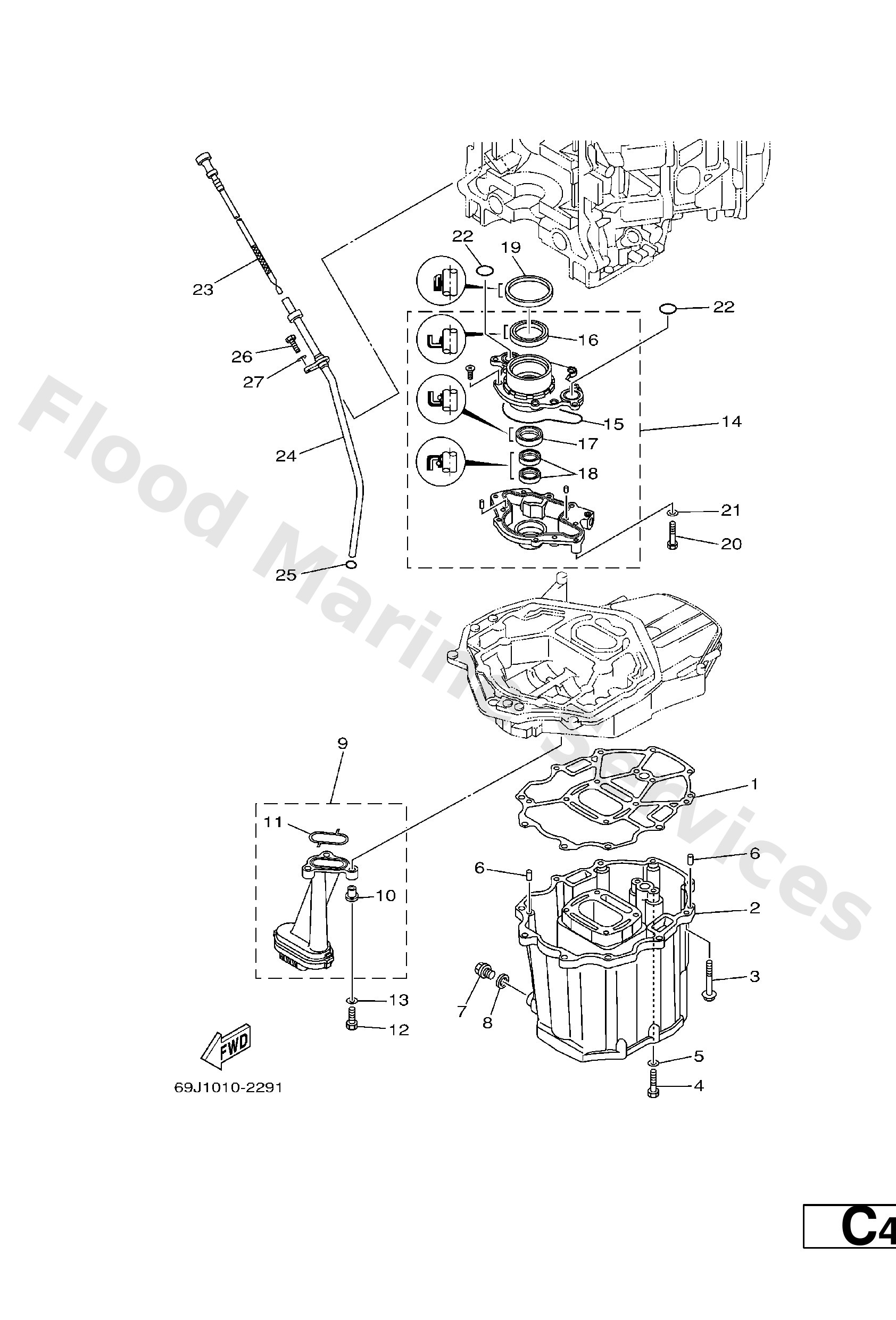

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
69J1531200
Gasket, oil pan
Loading…
↗
1
69J−15312−00
Gasket, oil pan
Loading…
↗
2
69J15311005B
Oil pan
Loading…
↗
2
69J−15311−00−5B
Oil pan
Loading…
↗
3
97575−08560
Bolt, hexagon w/w deep recess
Loading…
↗
3
97575--08560
Bolt, hexagon w/w deep recess
Loading…
↗
4
97095−08035
Bolt(70w)
Loading…
↗
4
97095--08035
Bolt(70w)
Loading…
↗
5
92995−08600
Washer, plain (663)
Loading…
↗
5
92995--08600
Washer, plain (663)
Loading…
↗
6
93608--16M16
Pin, dowel(6t4)
Loading…
↗
6
93608−16M16
Pin, dowel(6t4)
Loading…
↗
7
90340--14M06
Plug, straight screw(62y)
Loading…
↗
7
90340−14M06
Plug, straight screw(62y)
Loading…
↗
8
90430--14M09
Gasket
Loading…
↗
8
90430−14M09
Gasket
Loading…
↗
9
69J−13411−00
Strainer, oil
Loading…
↗
9
69J--13411--00
Strainer, oil
Loading…
↗
10
90387−06M64
Collar
Loading…
↗
10
9038706M64
Collar
Loading…
↗
11
69J--13415--00
Seal, oil strainer
Loading…
↗
11
69J−13415−00
Seal, oil strainer
Loading…
↗
12
9702706025
Bolt, hexagon
Loading…
↗
12
97027−06025
Bolt, hexagon
Loading…
↗
13
9290706600
Washer(6ta)
Loading…
↗
13
92907−06600
Washer(6ta)
Loading…
↗
14
69J−13300−00
Oil pump assembly
Loading…
↗
14
69J1330000
Oil pump assembly
Loading…
↗
15
69J1332900
Gasket, pump cover
Loading…
↗
15
69J−13329−00
Gasket, pump cover
Loading…
↗
16
69J−13338−00
Oil seal
Loading…
↗
16
69J1333800
Oil seal
Loading…
↗
17
69J−13119−00
Oil seal
Loading…
↗
17
69J1311900
Oil seal
Loading…
↗
18
69J−13631−00
Oil seal
Loading…
↗
18
69J--13631--00
Oil seal
Loading…
↗
19
69J−11355−00
Seal, cylinder 1
Loading…
↗
19
69J--11355--00
Seal, cylinder 1
Loading…
↗
20
97095--06040
Bolt (682)
Loading…
↗
20
97095−06040
Bolt (682)
Loading…
↗
21
92995--06600
Washer, plain (646)
Loading…
↗
21
92995−06600
Washer, plain (646)
Loading…
↗
22
93210−25552
O-ring (22f)
Loading…
↗
22
93210--25552
O-ring (22f)
Loading…
↗
23
69J1536200
Plug, Oil Level
Loading…
↗
23
69J−15362−00
Plug, Oil Level
Loading…
↗
24
69J1537700
Guide, Inlet
Loading…
↗
24
69J−15377−00
30 − 24
Loading…
↗
25
93210--19MJ3
O-ring
Loading…
↗
25
93210−19MJ3
O-ring
Loading…
↗
26
97095--06020
Bolt(7u8)
Loading…
↗
26
97095−06020
Bolt(7u8)
Loading…
↗
