FL250DET (2011)
OIL PAN

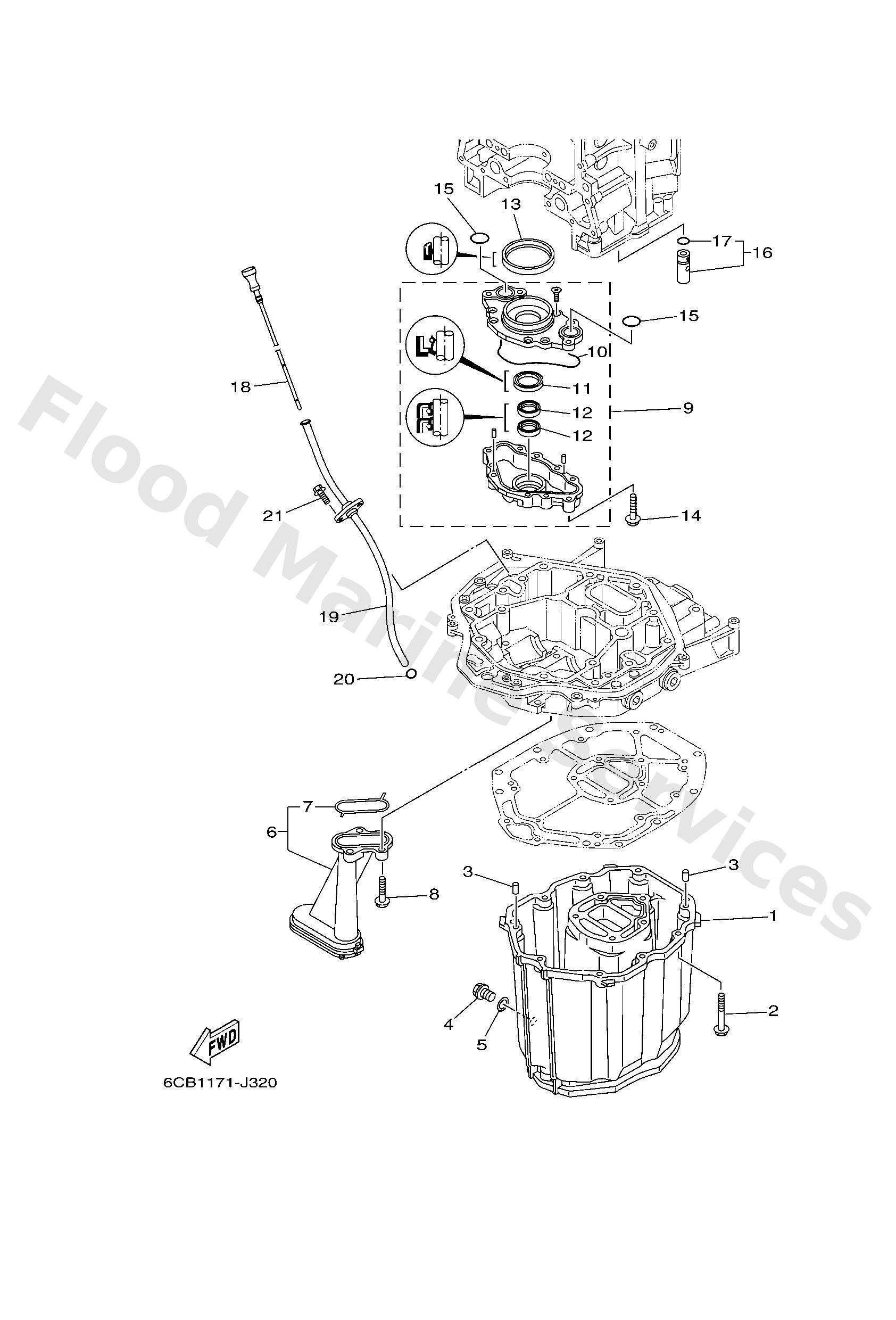

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6CB1531100CA
Oil pan
Loading…
↗
2
9757508535
Bolt(70w)
Loading…
↗
3
9360816M16
Pin, dowel(6t4)
Loading…
↗
4
9034014M06
Plug, straight screw(62y)
Loading…
↗
5
9043014M09
Gasket
Loading…
↗
6
6CB1341100
Strainer, oil
Loading…
↗
7
6AW1341500
Seal, oil strainer
Loading…
↗
8
9581206025
Bolt, flange
Loading…
↗
9
6CB1330000
Oil pump assembly
Loading…
↗
10
6CB1332900
Gasket, pump cover
Loading…
↗
11
6AW1311900
Oil seal
Loading…
↗
12
69J1363100
Oil seal
Loading…
↗
13
6CB1135500
Seal, cylinder 1
Loading…
↗
14
9587506040
Bolt, flange deep recess
Loading…
↗
15
9321026658
O-ring(36y)
Loading…
↗
16
6CB1349000
Relief valve assembly
Loading…
↗
17
6CB1347300
O-ring
Loading…
↗
18
6CB1536200
Plug, oil level
Loading…
↗
19
6CB1537700
Guide, inlet
Loading…
↗
20
9321019MJ3
O-ring
Loading…
↗
21
9587506016
Bolt, flange deep recess
Loading…
↗
