FL350AET (2017)
OIL PAN

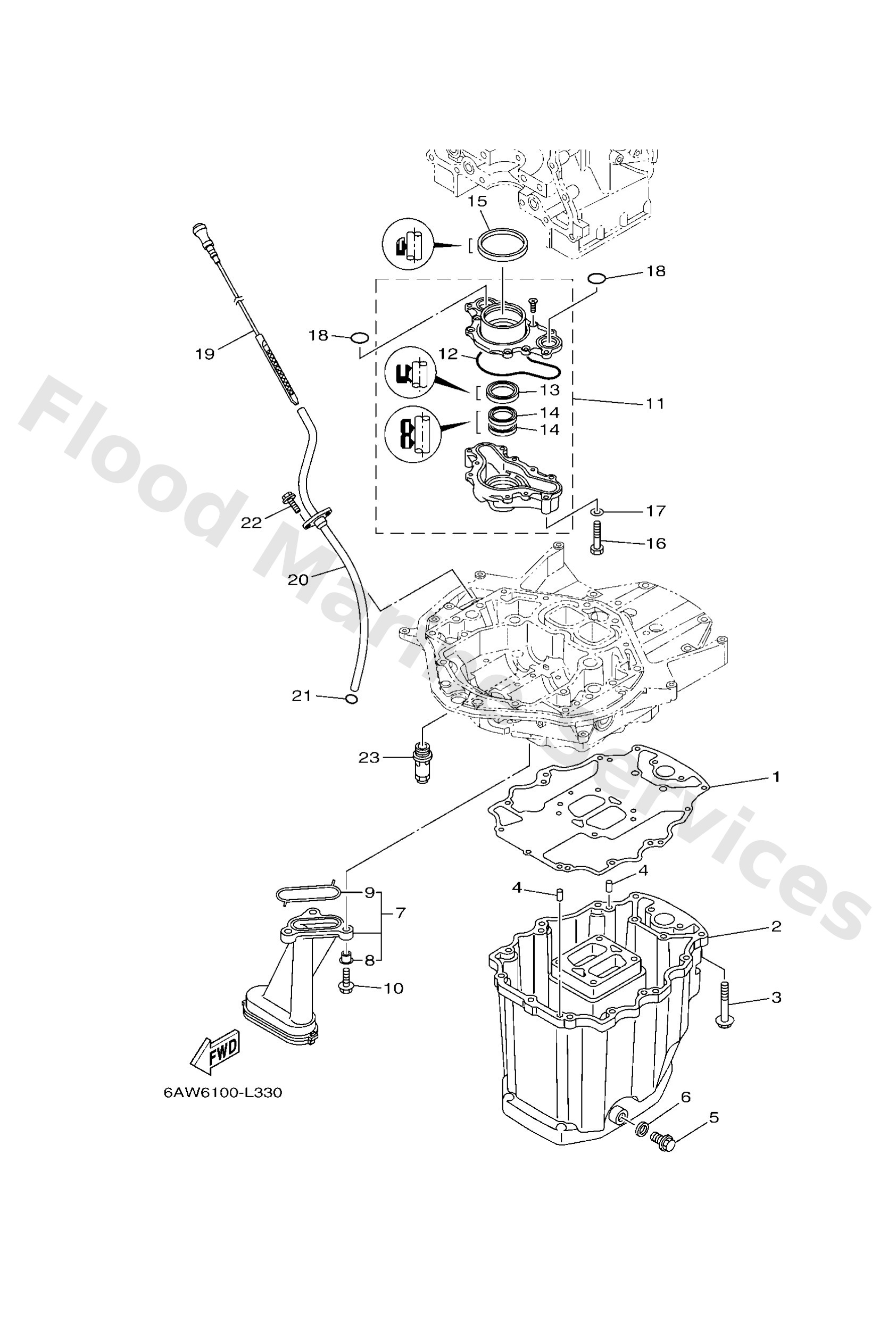

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6AW1531200
Gasket, oil pan
Loading…
↗
2
6AW1531100CA
Oil pan
Loading…
↗
3
9757508570
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9034014M06
Plug, straight screw(62y)
Loading…
↗
6
9043014M09
Gasket
Loading…
↗
7
6AW1341100
Strainer, oil
Loading…
↗
8
9038706263
Collar
Loading…
↗
9
6AW1341500
Seal, oil strainer
Loading…
↗
10
9581206025
Bolt, flange
Loading…
↗
11
6AW1330002
Oil pump assembly
Loading…
↗
12
6CB1332900
Gasket, pump cover
Loading…
↗
13
6AW1311900
Oil seal
Loading…
↗
14
6AW1363100
Oil seal
Loading…
↗
15
69J1135500
Seal, cylinder 1
Loading…
↗
16
9707506050
Bolt(jf7)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
9321026658
O-ring(36y)
Loading…
↗
19
6AW1536201
Plug, oil level
Loading…
↗
20
6AW1537700
Guide, inlet
Loading…
↗
21
9321019MJ3
O-ring
Loading…
↗
22
9589506016
Bolt, flange deep recess
Loading…
↗
23
6AW1349001
Relief valve assembly
Loading…
↗
