Yamaha Outboard Parts - OIL PAN - FT25BET (2002) | Flood Marine

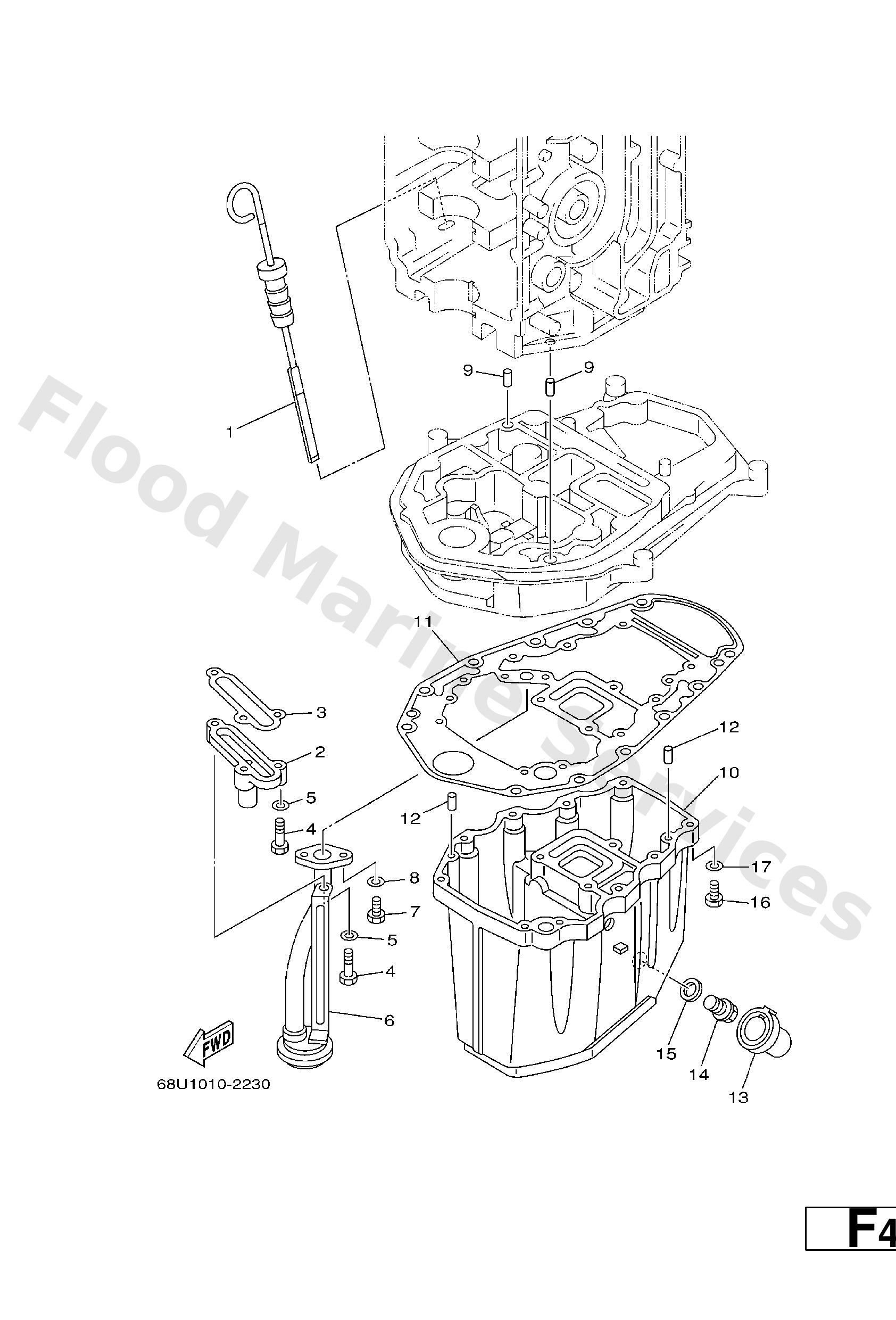

Diagram: OIL PAN

Diagram

Parts List

Reference
Description
Price


1
65W1536201
Plug, oil level
Loading…

↗
2
62Y--11575--00
Relief valve ass'y
Loading…

↗
3
62Y--13475--00
Gasket
Loading…

↗
4
97013--06025
Bolt(62y)
Loading…

↗
5
92903--06600
Washer, plain (646)
Loading…

↗
6
62Y--13411--00
Strainer, oil
Loading…

↗
7
97013--06016
Bolt, hexagon deep recess
Loading…

↗
9
93608--12M05
Pin, dowel b (6e5)
Loading…

↗
10
62Y15311025B
Oil pan
Loading…

↗
11
69W--15312--00
Gasket, oil pan
Loading…

↗
12
93606--12019
Pin, dowel (614)
Loading…

↗
13
67C--15316--00
Damper 1
Loading…

↗
14
90340--14M06
Plug, straight screw(62y)
Loading…

↗
15
90430--14M09
Gasket
Loading…

↗
16
97075--06025
Bolt
Loading…

↗
17
92995--06600
Washer, plain (646)
Loading…

↗
