FT25BET (2003)
OIL PAN

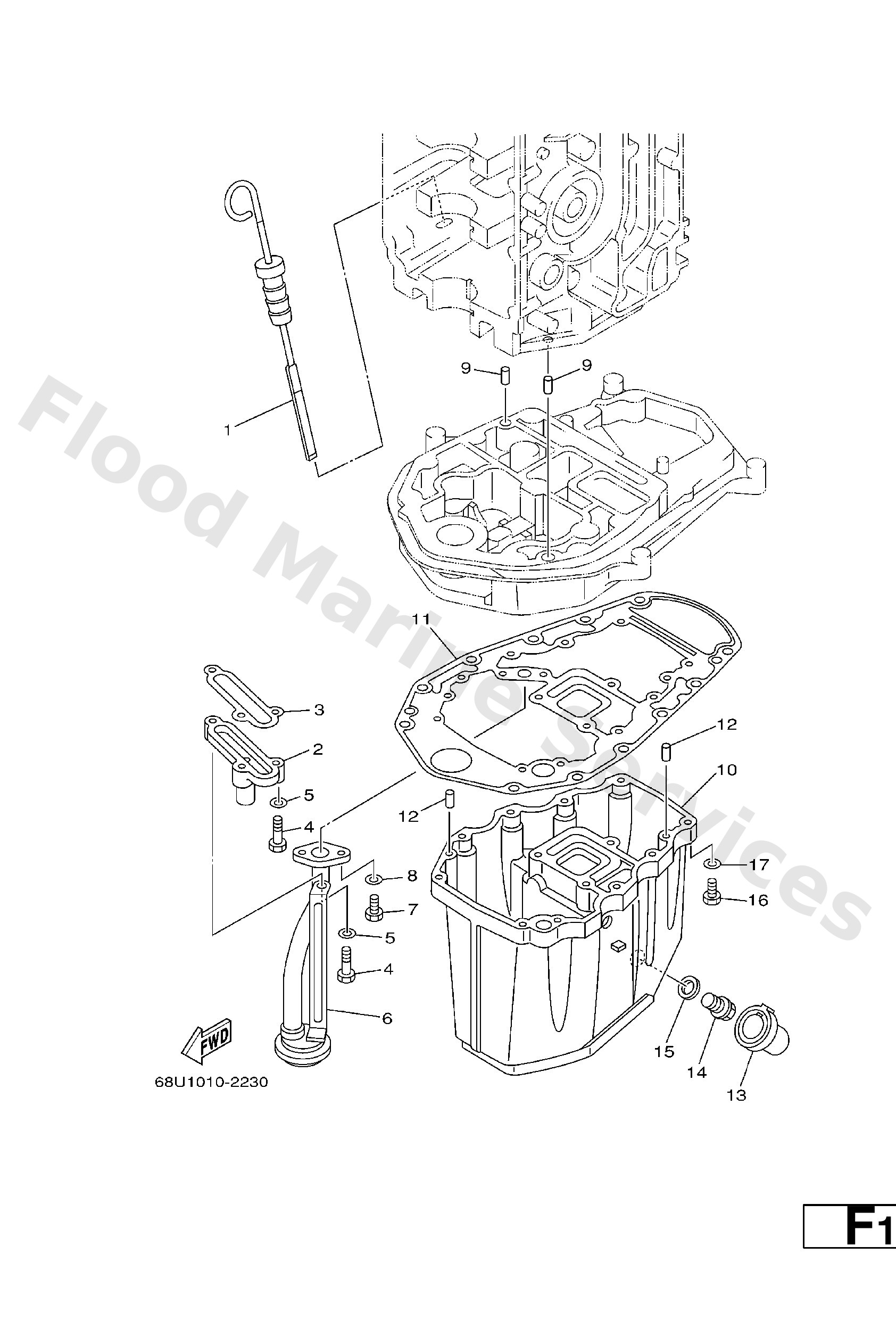

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
65W−15362−01
Plug, oil level
Loading…
↗
2
62Y−11575−00
Relief valve ass'y
Loading…
↗
3
62Y−13475−00
Gasket
Loading…
↗
4
97013−06025
Bolt(62y)
Loading…
↗
5
92903−06600
Washer, plain (646)
Loading…
↗
6
62Y−13411−00
Strainer, oil
Loading…
↗
7
97013−06016
Bolt, hexagon deep recess
Loading…
↗
9
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
10
62Y−15311−02−5B
Oil pan
Loading…
↗
11
69W−15312−00
Gasket, oil pan
Loading…
↗
12
93606−12019
Pin, dowel (614)
Loading…
↗
13
67C−15316−00
Damper 1
Loading…
↗
14
90340−14M06
Plug, straight screw(62y)
Loading…
↗
15
90430−14M09
Gasket
Loading…
↗
16
97075−06025
Bolt
Loading…
↗
17
92995−06600
Washer, plain (646)
Loading…
↗
