Yamaha Outboard Parts - OIL PAN - FT25FET (2015) | Flood Marine

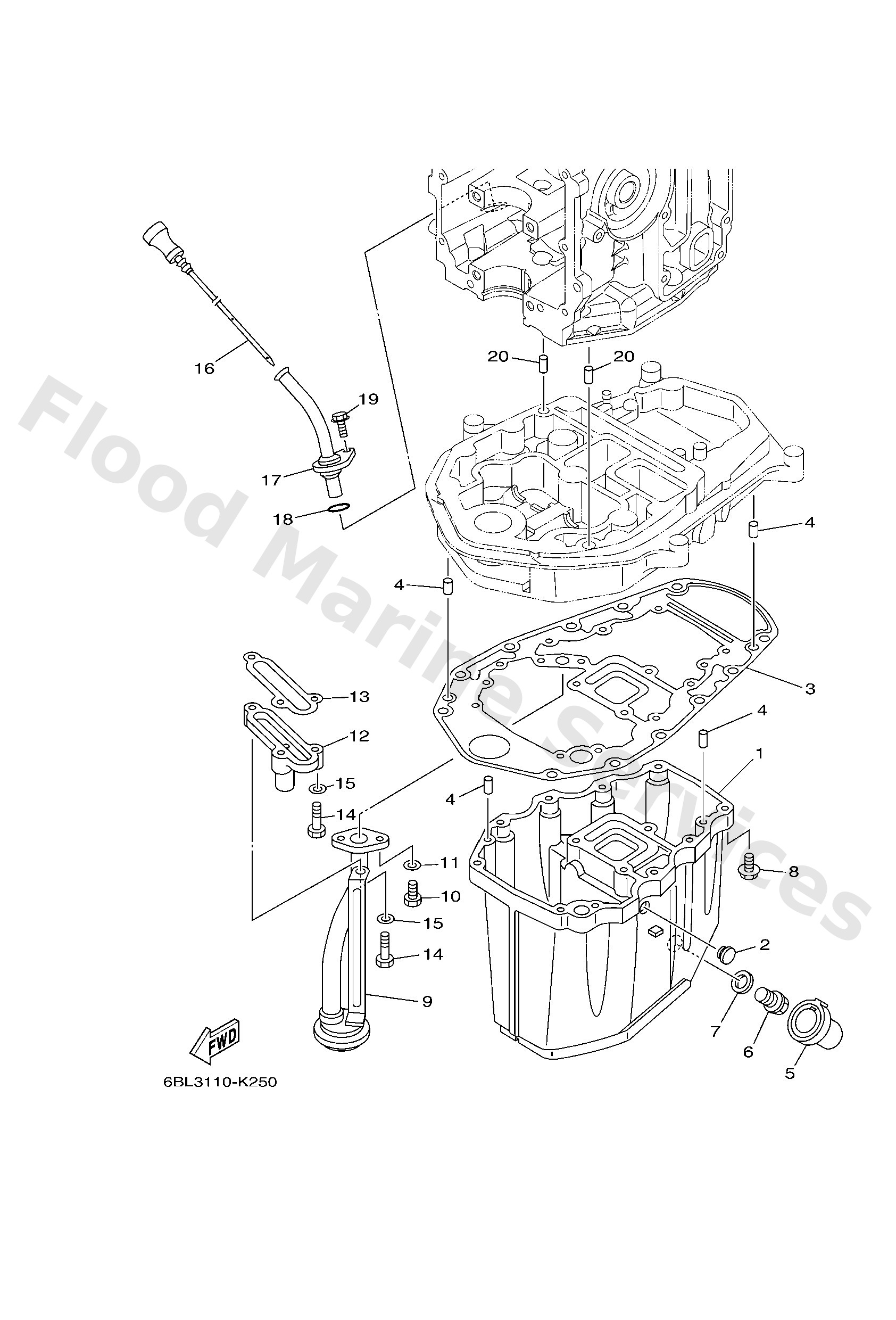

Diagram: OIL PAN

Diagram

Parts List

Reference
Description
Price


1
6BG1531100CA
Oil pan
Loading…

↗
2
9048012M25
Grommet (6e9)
Loading…

↗
3
69W1531200
Gasket, oil pan
Loading…

↗
4
9360612019
Pin, dowel (614)
Loading…

↗
5
67C1531600
Damper 1
Loading…

↗
6
9034014M06
Plug, straight screw(62y)
Loading…

↗
7
9043014M09
Gasket
Loading…

↗
8
9757506525
Bolt, hexagon w/w deep recess
Loading…

↗
9
62Y1341100
Strainer, oil
Loading…

↗
10
9701306016
Bolt, hexagon deep recess
Loading…

↗
11
9290306600
Washer, plain (646)
Loading…

↗
12
6BG115760094
Body, relief
Loading…

↗
13
62Y1347500
Gasket
Loading…

↗
14
9701306025
Bolt(62y)
Loading…

↗
16
6BL1536200
Plug, oil level
Loading…

↗
17
6BL1537700
Guide, inlet
Loading…

↗
18
9321019MJ3
O-ring
Loading…

↗
19
9589506016
Bolt, flange deep recess
Loading…

↗
20
9360812M05
Pin, dowel b (6e5)
Loading…

↗
