Yamaha Outboard Parts - OIL PAN - FT25FET (2021) | Flood Marine

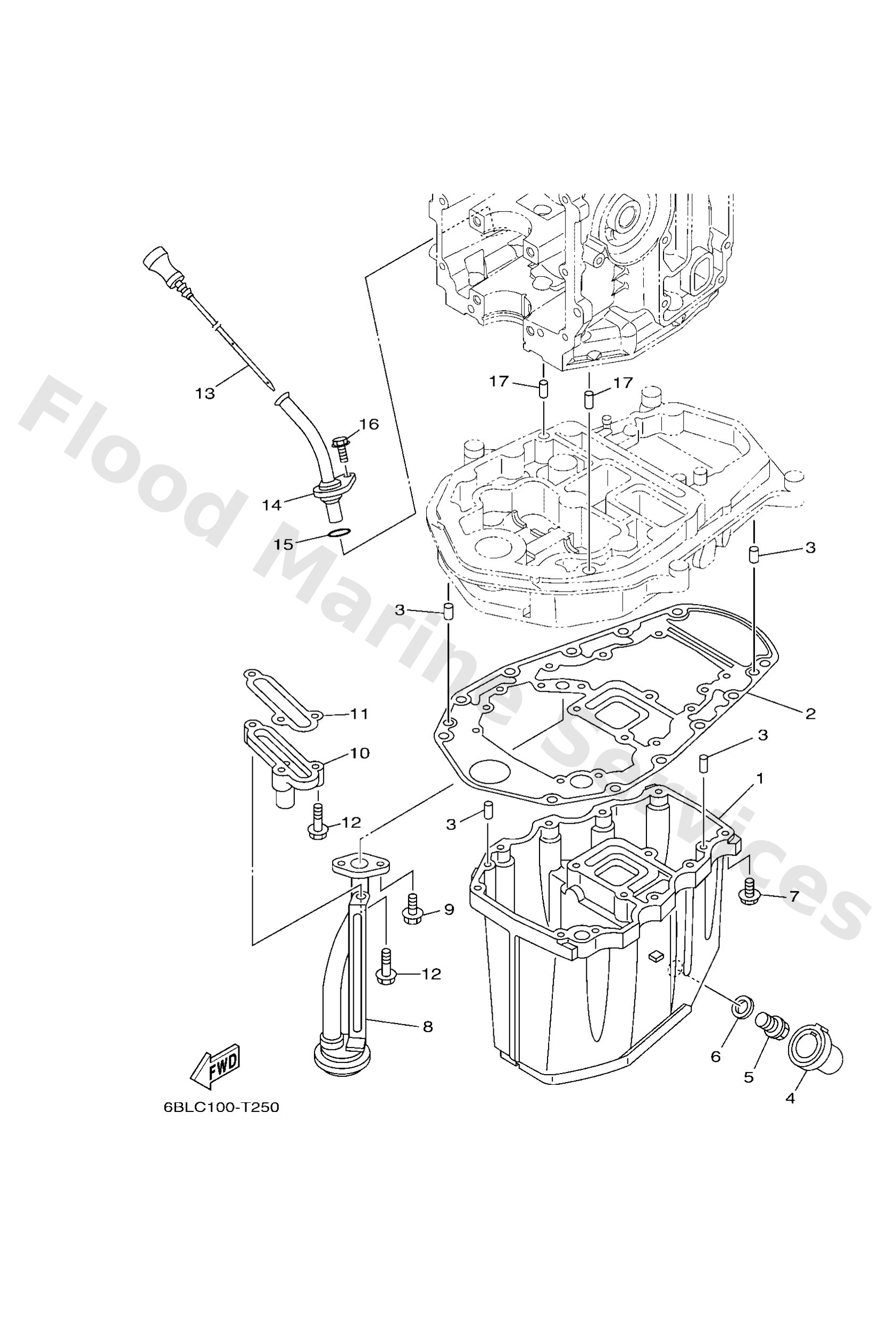

Diagram: OIL PAN

Diagram

Parts List

Reference
Description
Price


1
6BG1531110CA
Oil pan
Loading…

↗
2
69W1531201
Gasket, oil pan
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
67C1531601
Damper 1
Loading…

↗
5
9034014M06
Plug, straight screw(62y)
Loading…

↗
6
9043014M09
Gasket
Loading…

↗
7
97E7506525
Bolt, hexagon w/w deep recess
Loading…

↗
8
62Y1341100
Strainer, oil
Loading…

↗
9
9751306516
Bolt, hexagon deep recess
Loading…

↗
10
6BG115760094
Body, relief
Loading…

↗
11
62Y1347500
Gasket
Loading…

↗
12
9751306525
Bolt, with washer(61b)
Loading…

↗
13
6BL1536200
Plug, oil level
Loading…

↗
14
6BL1537700
Guide, inlet
Loading…

↗
15
9321019MJ3
O-ring
Loading…

↗
16
95D9506016
Bolt, flange deep recess
Loading…

↗
17
9360812M05
Pin, dowel b (6e5)
Loading…

↗
