FT8DEP (2003)
OIL PAN

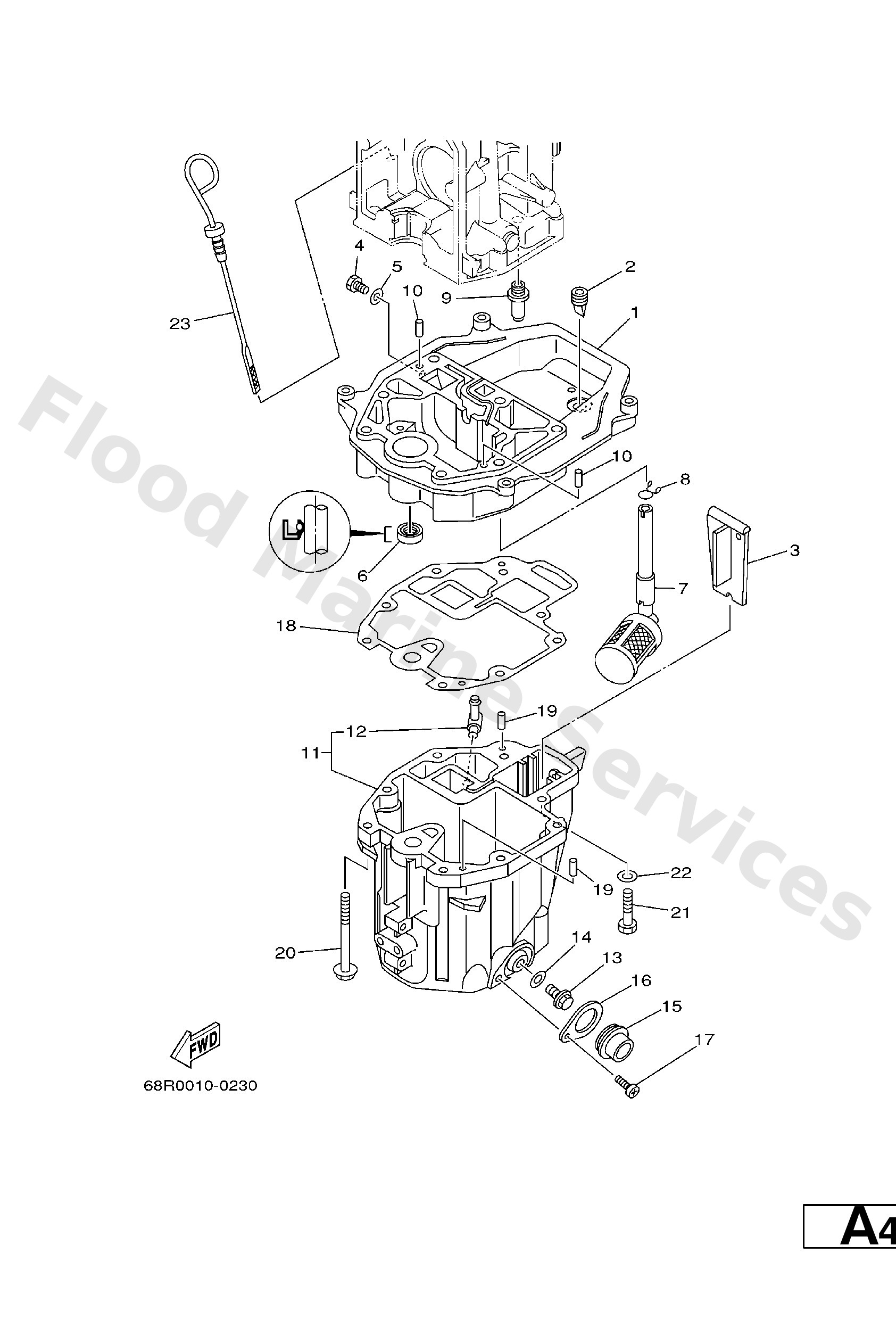

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
68T−41137−00−94
Guide, exhaust
Loading…
↗
2
65W−42717−00
Rubber, seal 2
Loading…
↗
3
68T−45181−00
Plate
Loading…
↗
4
97095−08014
Bolt, hexagon deep recess
Loading…
↗
5
90430−08143
Gasket (256-11198-00)
Loading…
↗
6
93101−12M70
Oil seal
Loading…
↗
7
68T−13421−01
Strainer 2
Loading…
↗
8
90467−11M08
Clip(72x)
Loading…
↗
9
6G8−11575−00
Relief valve ass'y
Loading…
↗
10
93606−19M23
Pin, dowel
Loading…
↗
11
68T−15311−00−5B
Oil pan
Loading…
↗
12
6H1−11372−00
Nipple, hose
Loading…
↗
13
90340−10M10
Plug, straight screw
Loading…
↗
14
90430−10M11
Gasket
Loading…
↗
15
68T−15316−00
Damper, engine mount 1
Loading…
↗
16
68T−15317−00
Spacer, engine mount
Loading…
↗
17
97885−05008
Screw, pan head
Loading…
↗
18
68T−13475−00
Gasket
Loading…
↗
19
93604−12M07
Pin, dowel (688)
Loading…
↗
20
90119−08005
Bolt, with washer
Loading…
↗
21
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
22
92995−08600
Washer, plain (663)
Loading…
↗
23
68T−15362−00
Plug, oil level
Loading…
↗
